1-282834-0 | TE Connectivity

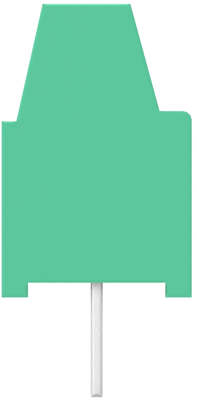

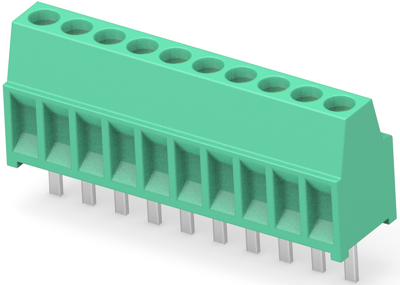

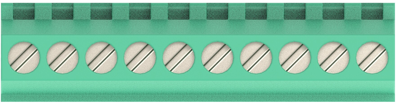

PCB terminal, 10 pole, pitch 2.54 mm, AWG 30-16, 10 A, cage clamp, green, 1-282834-0
Order No.: 71P1759
EAN: 4099891627089
MPN:
1-282834-0
Unit Price (€ / pc.)
16.8861 € *
Available in 5 Days: 5,271 pcs. - if ordered today
Total Price:
16.89 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8861 €
10 pcs.
15.6842 €
25 pcs.
14.6370 €
50 pcs.
13.3042 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-282834-0, TE Connectivity
The 1-282834-0 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6.5 mm | |
| Grid | 2.54 mm | |
| AWG cross-section | AWG 30-16 | |
| Rated current | 10 A | |
| Rated voltage | 150 V | |
| Cable cross-section | 0.05-1.3 mm² | |
| Colour | green | |
| Pin number | 10 pole | |
| Assembly | THT | |
| Height | 10 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
