1-282822-2 | TE Connectivity
PCB terminal, 12 pole, pitch 5 mm, 15 A, pin, green, 1-282822-2
Order No.: 71P1752
EAN: 4099891627010
MPN:
1-282822-2
Unit Price (€ / pc.)
2.1063 € *
Standard delivery time from the manufacturer is: 13 Weeks

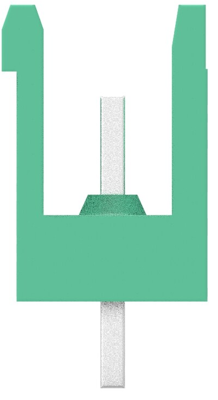

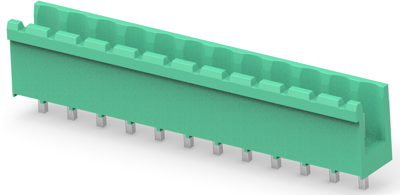

PCB Terminal, 1-282822-2, TE Connectivity
The 1-282822-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| Width | 8.35 mm | |
| Connection | pin | |
| Grid | 5 mm | |
| Pin number | 12 pole | |
| Rated voltage | 300 V | |
| Height | 12 mm | |
| Colour | green | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
