1-2350398-6 | TE Connectivity

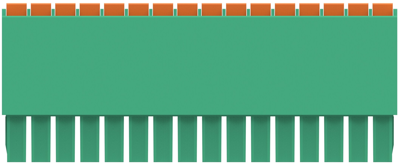

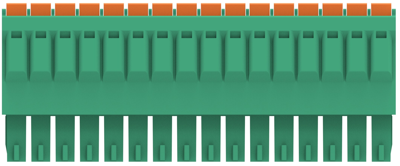

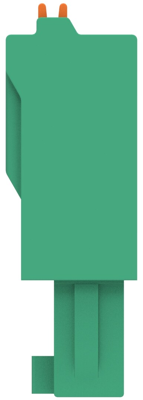

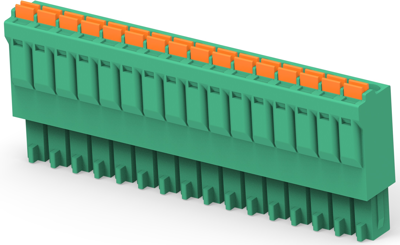

PCB terminal, 16 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in spring connection, green, 1-2350398-6
Order No.: 71P1678
EAN: 4099891626969
MPN:
1-2350398-6
Unit Price (€ / pc.)
13.3875 € *
Available in 5 Days: 1,451 pcs. - if ordered today
Total Price:
13.39 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3875 €
10 pcs.
12.4355 €
25 pcs.
11.6025 €
50 pcs.
10.5434 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-2350398-6, TE Connectivity
The 1-2350398-6 enables tool-less wire insertion of ferruled and unferruled wires. This saves up to 80% installation labor time vs. Traditional screw-clamp termination, leading to important cost savings.
Features
- Push-in clamp termination
Applications
- Servo/Inverter drives
- Industrial controls/PLC
- Safety controls/Modules
- Power supply units
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 7.7 mm | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 8 A | |
| Rated voltage | 150 V | |
| Cable cross-section | 0.05-1.31 mm² | |
| Colour | green | |
| Pin number | 16 pole | |
| Assembly | THT | |
| Height | 21.1 mm | |
| Connection | push-in spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
