1-2350397-0 | TE Connectivity
PCB terminal, 10 pole, pitch 5 mm, AWG 26-12, 10 A, push-in spring connection, green, 1-2350397-0
Order No.: 71P1674
EAN: 4099891626921
MPN:
1-2350397-0
Unit Price (€ / pc.)
9.9603 € *
Available in 5 Days: 1,420 pcs. - if ordered today
Total Price:
9.96 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9603 €
10 pcs.
9.2463 €
25 pcs.
8.6275 €
50 pcs.
7.8421 €
*incl. VAT plus shipping costs
Subject to prior sale

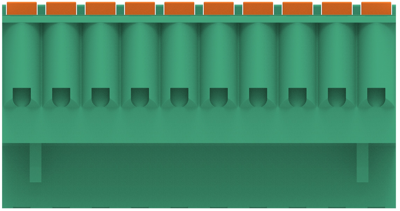

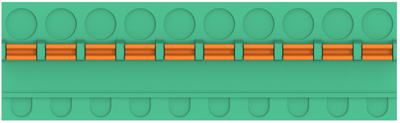

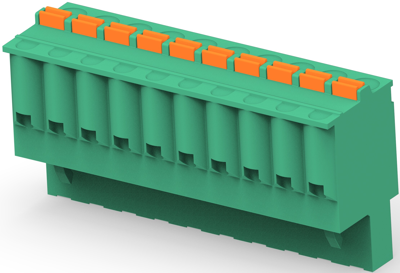

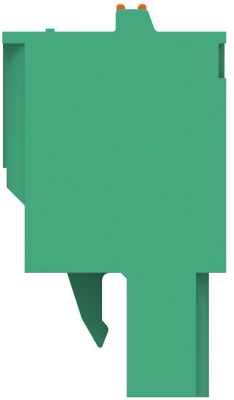

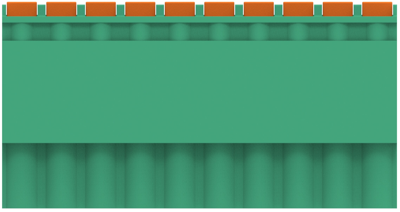

PCB Terminal, 1-2350397-0, TE Connectivity
The 1-2350397-0 enables tool-less wire insertion of ferruled and unferruled wires. This saves up to 80% installation labor time vs. Traditional screw-clamp termination, leading to important cost savings.
Features
- Push-in clamp termination
Applications
- Servo/Inverter drives
- Industrial controls/PLC
- Safety controls/Modules
- Power supply units
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 15 mm | |
| Grid | 5 mm | |
| AWG cross-section | AWG 26-12 | |
| Rated current | 10 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-3.31 mm² | |
| Colour | green | |
| Pin number | 10 pole | |
| Assembly | THT | |
| Height | 24.4 mm | |
| Connection | push-in spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
