1-2342079-7 | TE Connectivity
PCB terminal, 17 pole, pitch 5 mm, 15 A, pin, black, 1-2342079-7
Order No.: 71P1660
EAN: 4099891626839
MPN:
1-2342079-7
Unit Price (€ / pc.)
48.7900 € *
Available: 0 pcs.
Available in 5 Days: 350 pcs.
Leadtime: 1 Week **
Total Price:
48.79 € *
Price list
Quantity
Price per unit*
2 pcs.
48.7900 €
9 pcs.
45.9459 €
*incl. VAT plus shipping costs
**Subject to prior sale

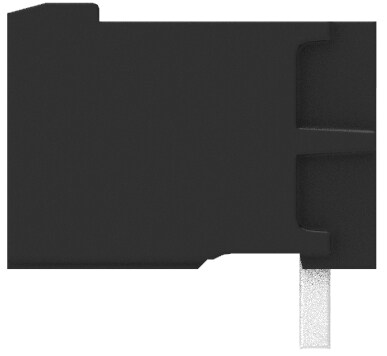

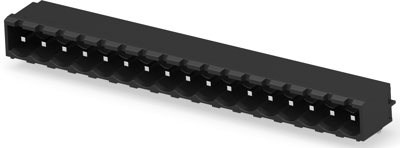

PCB Terminal, 1-2342079-7, TE Connectivity
The 1-2342079-7 is stackable end-to-end without loss of centerline spacing. This product has a nonmagnetic metal parts, allowing usage in EMV sensitive devices and corrosive environments. Also low temperature rise during operation due to maximal contact force.
Technical specifications
| Connection | pin | |
| Width | 12 mm | |
| Colour | black | |
| Height | 8.65 mm | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 17 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
