1-2271457-8 | TE Connectivity

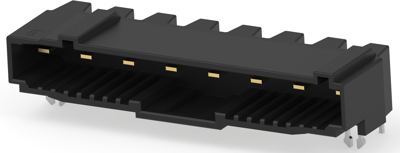

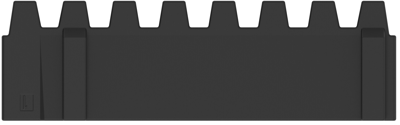

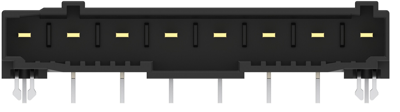

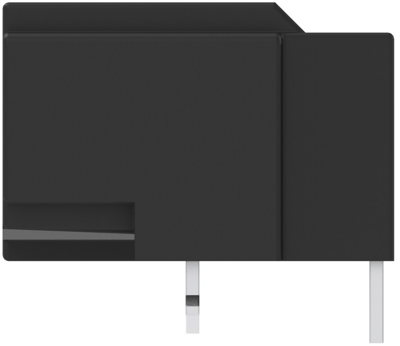

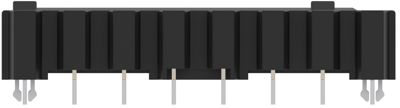

PCB terminal, 8 pole, pitch 7.5 mm, 14.5 A, pin, black, 1-2271457-8
Unit Price (€ / pc.)
6.6640 € *
Available in 5 Days: 11,940 pcs. - if ordered today
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6640 €
5 pcs.
6.3189 €
10 pcs.
5.9143 €
25 pcs.
5.3907 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-2271457-8, TE Connectivity
The 1-2271457-8 provides eficient and reliable solution to power and signal line interface, especially for servo drive application. This product's design allows users to easily obtain a highly reliable wire termination, without having to use screw fasteners or crimps.
Features
- Highly reliable connection by “multiple contact points” stable contact performance
- Safety and easy mating via locking system and guide rail
- Fast field installation and highly reliable field wire termination
- Complete product portfolio for platform design
Applications
- Servo Drive
- Variable Frequency Controller
- Robotic and CNC Control
- PLC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | pin | |
| Width | 18.1 mm | |
| Colour | black | |
| Pin number | 8 pole | |
| Contact distance | RM 7.5/8.5 | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Height | 12 mm | |
| Rated current | 14.5 A | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
