1-2229794-2 | TE Connectivity
PCB terminal, 7 pole, pitch 7.5 mm, AWG 22-14, 12.7 A, black, 1-2229794-2
Unit Price (€ / pc.)
4.3554 € *
Available: 0 pcs.
Available in 5 Days: 741 pcs.
Leadtime: 1 Week **
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
25 pcs.
4.3554 €
150 pcs.
4.0936 €
*incl. VAT plus shipping costs
**Subject to prior sale

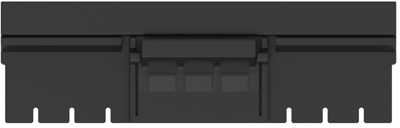

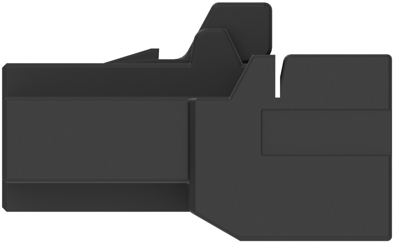

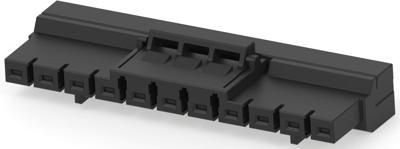

PCB Terminal, 1-2229794-2, TE Connectivity
The 1-2229794-2 provides eficient and reliable solution to power and signal line interface, especially for servo drive application. This product's design allows users to easily obtain a highly reliable wire termination, without having to use screw fasteners or crimps.
Features
- Highly reliable connection by “multiple contact points” stable contact performance
- Safety and easy mating via locking system and guide rail
- Fast field installation and highly reliable field wire termination
- Complete product portfolio for platform design
Applications
- Servo Drive
- Variable Frequency Controller
- Robotic and CNC Control
- PLC
Technical specifications
| AWG cross-section | AWG 22-14 | |
| Width | 15.6 mm | |
| Colour | black | |
| Height | 25.4 mm | |
| Cable cross-section | 0.32-2.1 mm² | |
| Rated voltage | 300 V | |
| Rated current | 12.7 A | |
| Pin number | 7 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
