1-1986722-6 | TE Connectivity

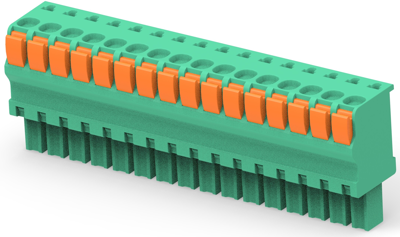

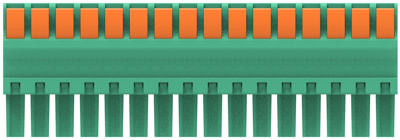

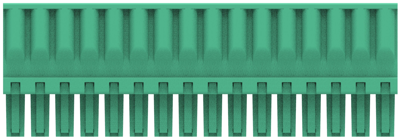

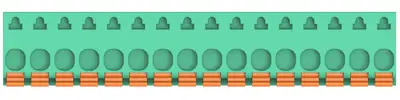

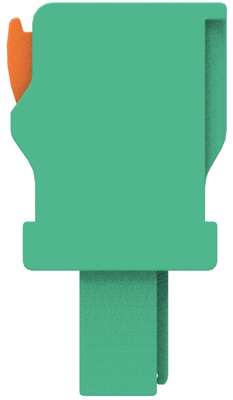

PCB terminal, 16 pole, pitch 3.81 mm, AWG 30-14, 9 A, push-in spring connection, green, 1-1986722-6
Order No.: 71P1159
EAN: 4099891626532
MPN:
1-1986722-6
Unit Price (€ / pc.)
33.2367 € *
Available in 5 Days: 123 pcs. - if ordered today
Total Price:
33.24 € *
Price list
Quantity
Price per unit*
1 pcs.
33.2367 €
2 pcs.
31.0947 €
5 pcs.
29.2145 €
10 pcs.
27.1558 €
*incl. VAT plus shipping costs
Subject to prior sale
Left spring plug, 1-1986722-6, TE Connectivity
The 1-1986722-6 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provides flexibility in the design of board layouts in tight spaces.
Features
- Fast wire connection
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in spring connection | |
| Width | 11.65 mm | |
| Colour | green | |
| Pin number | 16 pole | |
| AWG cross-section | AWG 30-14 | |
| Rated voltage | 300 V | |
| Height | 20.75 mm | |
| Rated current | 9 A | |
| Cable cross-section | 0.05-2 mm² | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
