1-1986692-6 | TE Connectivity
PCB terminal, 16 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 1-1986692-6
Order No.: 71P1112
EAN: 4099891626365
MPN:
1-1986692-6
Unit Price (€ / pc.)
23.9071 € *
Standard delivery time from the manufacturer is: 14 Weeks

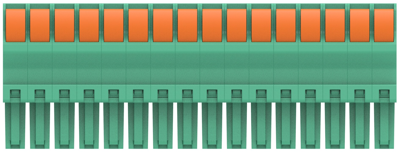

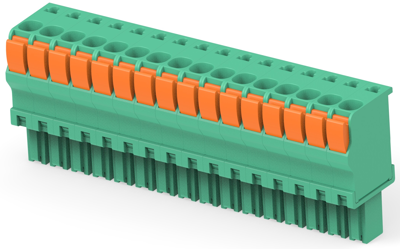

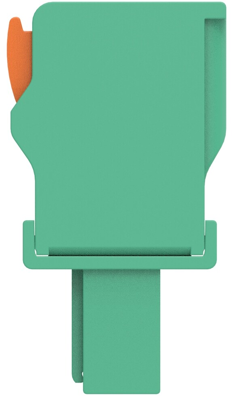

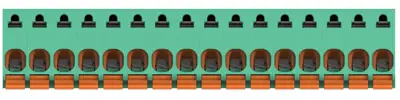

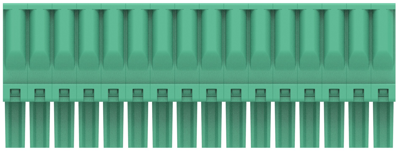

Right spring plug, 1-1986692-6, TE Connectivity
The 1-1986692-6 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provides flexibility in the design of board layouts in tight spaces.
Features
- Fast wire connection
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-14 | |
| Pin number | 16 pole | |
| Colour | green | |
| Cable cross-section | 0.05-2 mm² | |
| Connection | push-in spring connection | |
| Grid | 3.5 mm | |
| Rated voltage | 300 V | |
| Rated current | 9 A | |
| Width | 11.65 mm | |
| Height | 20.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
