1-1986692-5 | TE Connectivity
PCB terminal, 15 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 1-1986692-5
Order No.: 71P1111
EAN: 4099891626358
MPN:
1-1986692-5
Unit Price (€ / pc.)
37.9729 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
37.97 € *
Price list
Quantity
Price per unit*
1 pcs.
37.9729 €
2 pcs.
35.5215 €
5 pcs.
33.3795 €
10 pcs.
31.0233 €
*incl. VAT plus shipping costs
Subject to prior sale

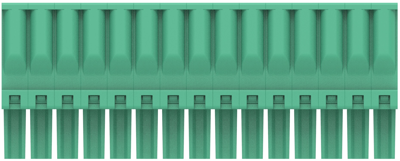

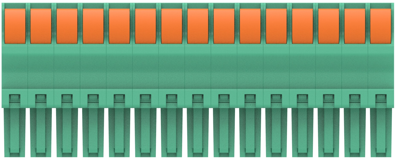

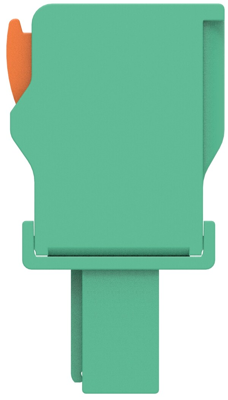

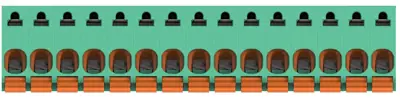

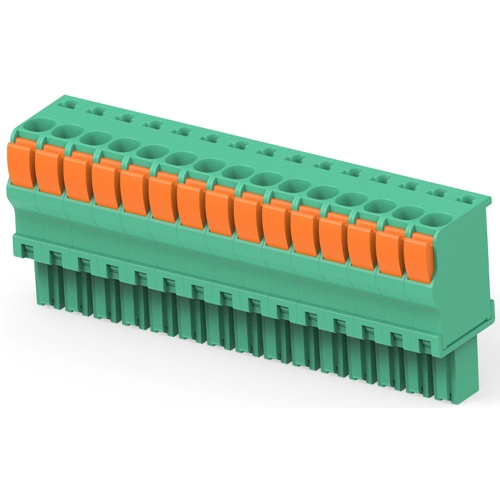

Right spring plug, 1-1986692-5, TE Connectivity
The 1-1986692-5 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provides flexibility in the design of board layouts in tight spaces.
Features
- Fast wire connection
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in spring connection | |
| Width | 11.65 mm | |
| Colour | green | |
| Pin number | 15 pole | |
| AWG cross-section | AWG 30-14 | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Height | 20.75 mm | |
| Rated current | 9 A | |
| Cable cross-section | 0.05-2 mm² | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
