1-1986692-4 | TE Connectivity
PCB terminal, 14 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 1-1986692-4
Order No.: 71P1110
EAN: 4099891626341
MPN:
1-1986692-4
Unit Price (€ / pc.)
28.1316 € *
Available in 5 Days: 200 pcs. - if ordered today
Total Price:
28.13 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1316 €
5 pcs.
26.6679 €
10 pcs.
24.9543 €
25 pcs.
22.7528 €
*incl. VAT plus shipping costs
Subject to prior sale

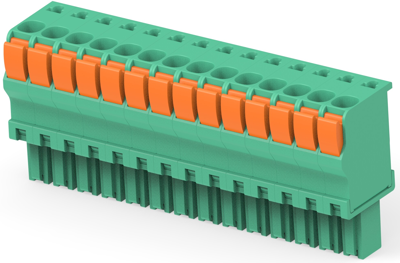

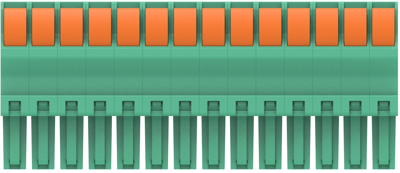

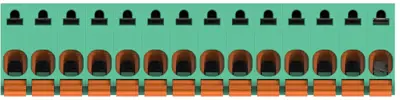

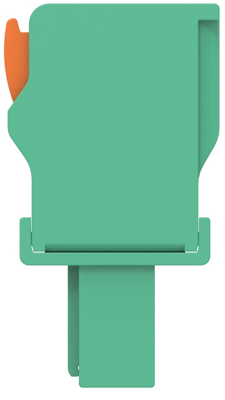

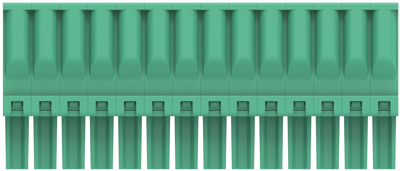

Right spring plug, 1-1986692-4, TE Connectivity
The 1-1986692-4 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provides flexibility in the design of board layouts in tight spaces.
Features
- Fast wire connection
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-14 | |
| Width | 11.65 mm | |
| Grid | 3.5 mm | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Colour | green | |
| Rated current | 9 A | |
| Connection | push-in spring connection | |
| Height | 20.75 mm | |
| Pin number | 14 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
