1-1986660-3 | TE Connectivity
PCB terminal, 3 pole, pitch 10.16 mm, AWG 26-6, 65 A, cage clamp, green, 1-1986660-3
Order No.: 71P1106
EAN: 4099891626310
MPN:
1-1986660-3
Unit Price (€ / pc.)
21.6580 € *
Available in 5 Days: 175 pcs. - if ordered today
Total Price:
21.66 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6580 €
5 pcs.
20.5394 €
10 pcs.
19.2185 €
25 pcs.
17.5168 €
*incl. VAT plus shipping costs
Subject to prior sale

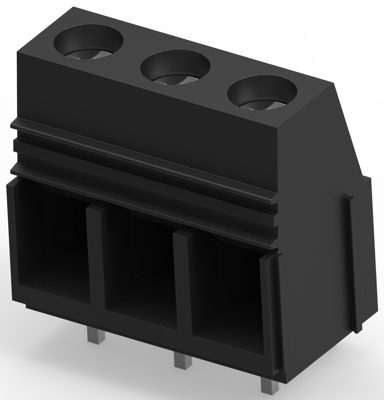

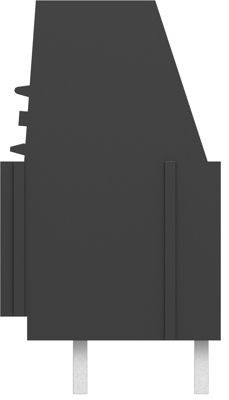

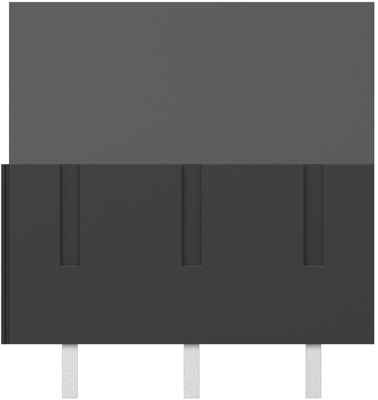

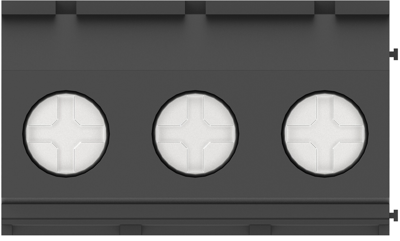

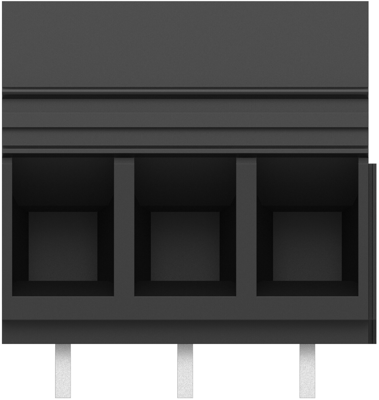

PCB Terminal, 1-1986660-3, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 3 Position, 10.16 mm Centerline, 1 Row, Side wire entry angle, 26-6 AWG Wire size, 65 A, 300 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 18.5 mm | |
| Grid | 10.16 mm | |
| Contact distance | RM 10.16/10.16 | |
| AWG cross-section | AWG 26-6 | |
| Rated current | 65 A | |
| Rated voltage | 300 V | |
| Colour | green | |
| Pin number | 3 pole | |
| Assembly | THT | |
| Height | 28.5 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
