1-1986371-0 | TE Connectivity

PCB terminal, 10 pole, pitch 3.5 mm, AWG 30-14, 11 A, cage clamp, green, 1-1986371-0

Order No.: 71P1096
EAN: 4099891626235
MPN:
1-1986371-0

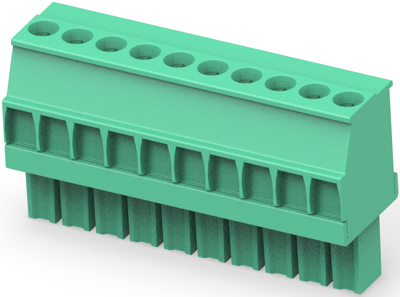

1-1986371-0 TE Connectivity PCB Terminal Blocks Image 1

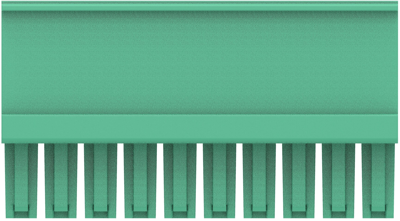

1-1986371-0 TE Connectivity PCB Terminal Blocks Image 2

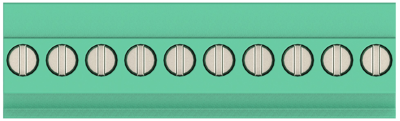

1-1986371-0 TE Connectivity PCB Terminal Blocks Image 3

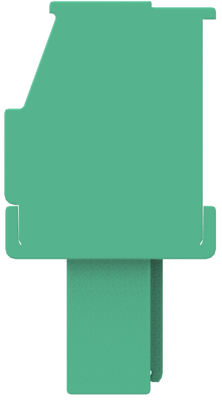

1-1986371-0 TE Connectivity PCB Terminal Blocks Image 4

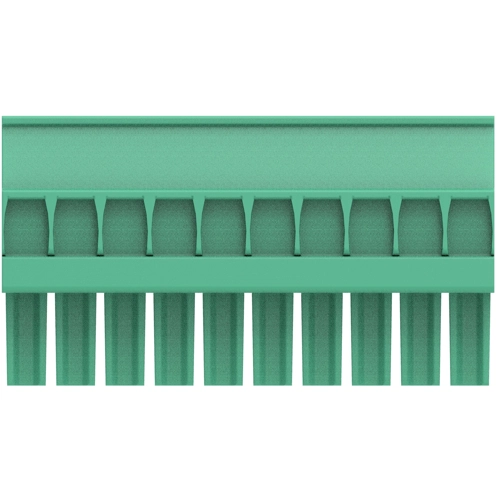

1-1986371-0 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
16.6124 € *
Available in 5 Days: 141 pcs. - if ordered today
Total Price:
16.61 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6124 €
10 pcs.
15.4224 €
25 pcs.
14.3990 €
50 pcs.
13.0900 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 1-1986371-0, TE Connectivity

The 1-1986371-0 is a left hand plug that allows additional configurations of wire access angles to be applied to vertical and Right angle headers. This product is end to end stackable without loss of centerline spacing.

Applications

  • Wire-to-board applications requiring field wiring termination
  • Industrial controls
  • HVAC controls
Technical specifications
Filter Property Value
Cable cross-section 0.05-2 mm²
Height 12.6 mm
Connection cage clamp
Colour green
Assembly THT
Rated current 11 A
Width 10.35 mm
Pin number 10 pole
Grid 3.5 mm
Rated voltage 300 V
AWG cross-section AWG 30-14
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
