1-1776244-2 | TE Connectivity

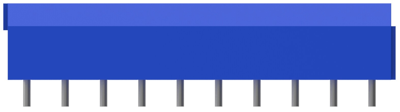

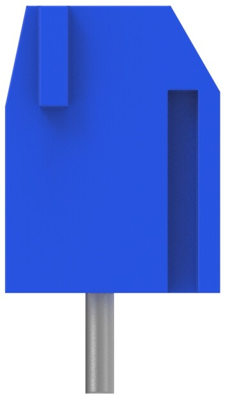

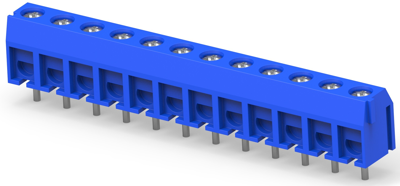

PCB terminal, 12 pole, pitch 5 mm, AWG 22-14, 10 A, screw connection, blue, 1-1776244-2
Images may differ
Total price
( 3.6295 € * / pcs.)
3.63 €
Available: 0 pcs.
Available in 19 Weeks: 286 pcs.
Leadtime
Quantity
Price per unit*
30 pcs.
3.6295 €
150 pcs.
3.2249 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
PCB Terminal, 1-1776244-2, TE Connectivity
The 1-1776244-2 has full wire guard protection so that the screw does not press directly on the wire. This product is designed with a dovetail and special detent to provide a more reliable attachmen after combining smaller sizes.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 22-14 | |
| Width | 7.5 mm | |
| Colour | blue | |
| Height | 10 mm | |
| Cable cross-section | 0.3-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 12 pole | |
| Grid | 5 mm |
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
