1-1776113-2 | TE Connectivity

PCB terminal, 12 pole, pitch 3.81 mm, AWG 28-16, 12 A, cage clamp, black, 1-1776113-2

Order No.: 71P0865
EAN: 4099891626174
MPN:
1-1776113-2

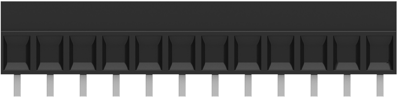

1-1776113-2 TE Connectivity PCB Terminal Blocks Image 1

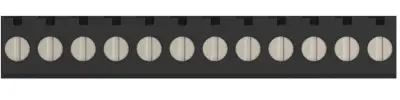

1-1776113-2 TE Connectivity PCB Terminal Blocks Image 2

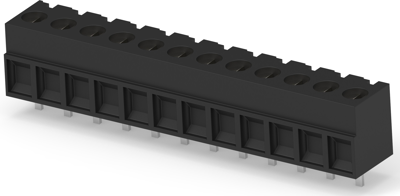

1-1776113-2 TE Connectivity PCB Terminal Blocks Image 3

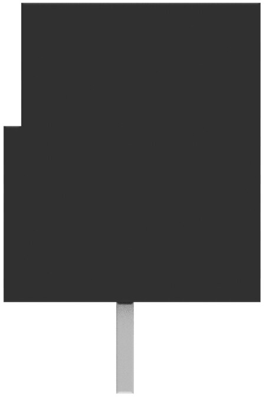

1-1776113-2 TE Connectivity PCB Terminal Blocks Image 4

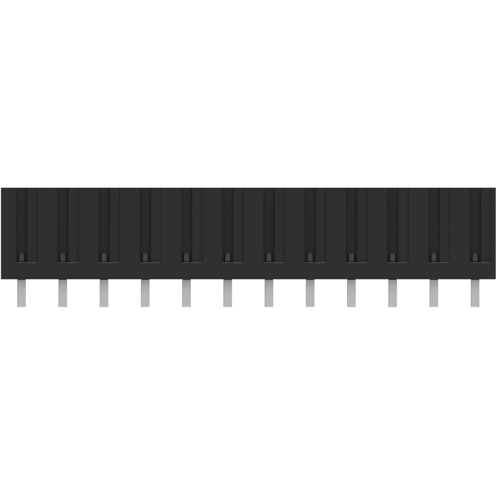

1-1776113-2 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
10.6505 € *
Available in 5 Days: 259 pcs. - if ordered today
Total Price:
10.65 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6505 €
5 pcs.
10.0912 €
10 pcs.
9.4486 €
25 pcs.
8.6156 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 1-1776113-2, TE Connectivity

The 1-1776113-2 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.

Applications

  • Industrial Control
  • HVAC equipment and controls
  • Communications equipment
  • Test & measurement
  • Fire & security
Technical specifications
Filter Property Value
Cable cross-section 0.08-1.4 mm²
Height 8.5 mm
Connection cage clamp
Colour black
Assembly THT
Rated current 12 A
Width 7.3 mm
Pin number 12 pole
Grid 3.81 mm
Rated voltage 150 V
AWG cross-section AWG 28-16
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
