1-1546931-2 | TE Connectivity

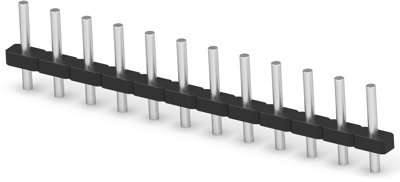

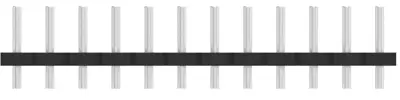

PCB terminal, 12 pole, pitch 5 mm, 12 A, pin, black, 1-1546931-2
Order No.: 71P0562
EAN: 4099891626150
MPN:
1-1546931-2
Unit Price (€ / pc.)
3.1297 € *
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.9155 €
25 pcs.
2.7132 €
50 pcs.
2.4752 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-1546931-2, TE Connectivity
The 1-1546931-2 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 2 mm | |
| Grid | 5 mm | |
| Rated current | 12 A | |
| Rated voltage | 300 V | |
| Colour | black | |
| Pin number | 12 pole | |
| Assembly | THT | |
| Height | 12.5 mm | |
| Connection | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
