1-1546670-4 | TE Connectivity

PCB terminal, 14 pole, AWG 22 to 14, 25 A, quick connection, black, 1-1546670-4

Order No.: 71P0556
EAN: 4099891626112
MPN:
1-1546670-4

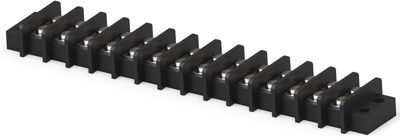

1-1546670-4 TE Connectivity PCB Terminal Blocks Image 1

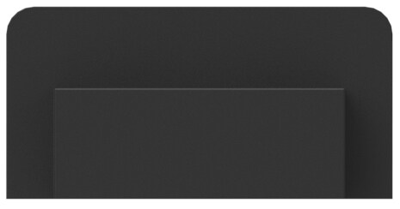

1-1546670-4 TE Connectivity PCB Terminal Blocks Image 2

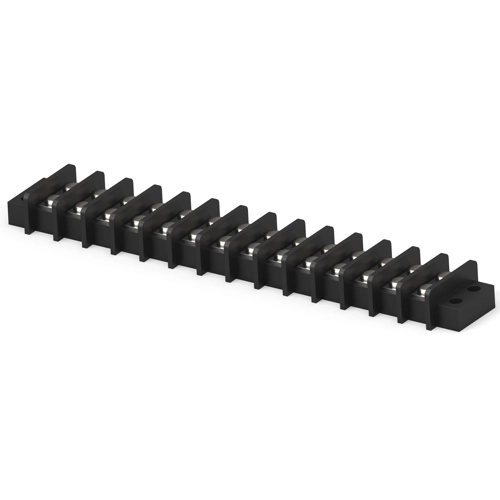

1-1546670-4 TE Connectivity PCB Terminal Blocks Image 3

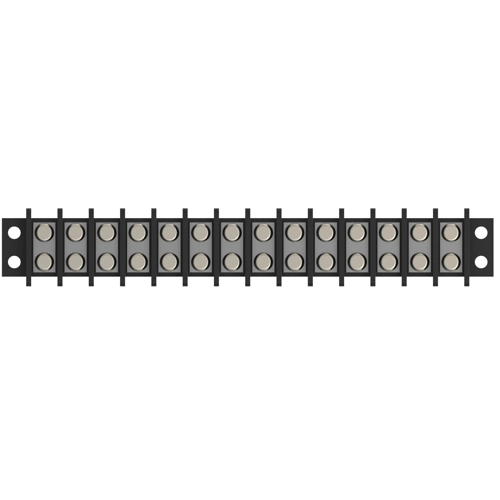

1-1546670-4 TE Connectivity PCB Terminal Blocks Image 4
Image may differ
Unit Price (€ / pc.)
6.8187 € *
Available in 5 Days: 1,727 pcs. - if ordered today
Total Price:
6.82 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8187 €
10 pcs.
6.3308 €
25 pcs.
5.9143 €
50 pcs.
5.3788 €
*incl. VAT plus shipping costs
Subject to prior sale

Barrier strip, 1-1546670-4, TE Connectivity

The 1-1546670-4 is offered in several industry standard centerline spacings, allowing you to choose from high density to high current applications. Full line of accessories includes jumpers, quick connect tabs, and some covers.

Applications

  • Machine controls
  • Power supplies
  • Test & measurement
  • Automation equipment
  • Security/alarm devices
  • Garage door openers
Technical specifications
Filter Property Value
Pin number 14 pole
Height 14 mm
Colour black
Rated current 25 A
Cable cross-section 0.3-2.0 mm²
Connection quick connection
AWG cross-section AWG 22 to 14
Width 27.94 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
