1-1546399-3 | TE Connectivity

PCB terminal, 28 pole, AWG 22 to 12, 25 A, screw connection, black, 1-1546399-3

Order No.: 71P0551
EAN: 4099891626099
MPN:
1-1546399-3
Series: AMP-LATCH

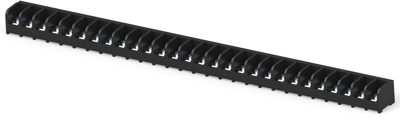

1-1546399-3 TE Connectivity PCB Terminal Blocks Image 1

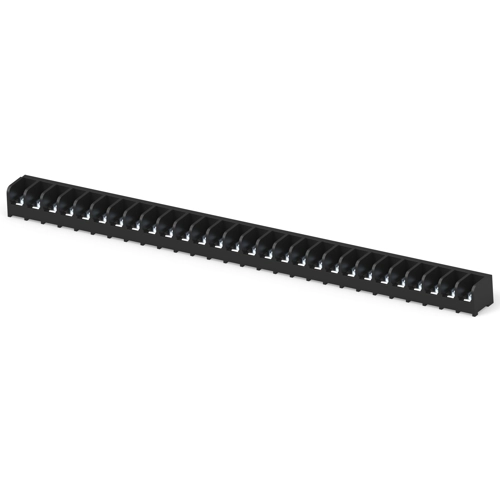

1-1546399-3 TE Connectivity PCB Terminal Blocks Image 2

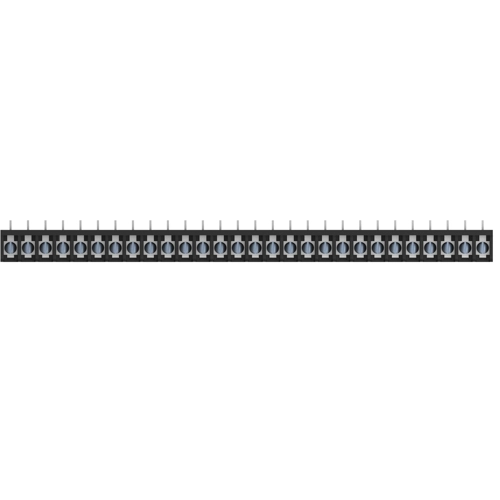

1-1546399-3 TE Connectivity PCB Terminal Blocks Image 3
1-1546399-3 TE Connectivity PCB Terminal Blocks Image 4
1-1546399-3 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
26.8107 € *
Available in 5 Days: 216 pcs. - if ordered today
Total Price:
26.81 € *
Price list
Quantity
Price per unit*
1 pcs.
26.8107 €
5 pcs.
25.4184 €
10 pcs.
23.7762 €
25 pcs.
21.6818 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1-1546399-3, TE Connectivity

Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 28 Position, 9.53 mm Centerline, 1 Row, 300 V.

Applications

  • Machine control
  • Power supplies
  • Test & measurement
  • Automation equipment
  • Security/alarm devices
  • Garage door openers
Technical specifications
Filter Property Value
Cable cross-section 0.3-3.0 mm²
Height 16 mm
Connection screw connection
Colour black
Assembly THT
Rated current 25 A
Width 17.78 mm
Pin number 28 pole
AWG cross-section AWG 22 to 12
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
