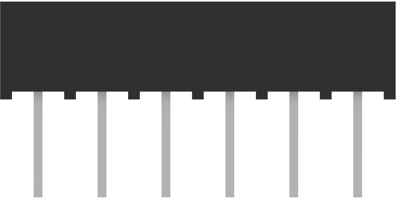

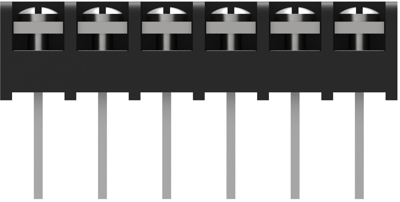

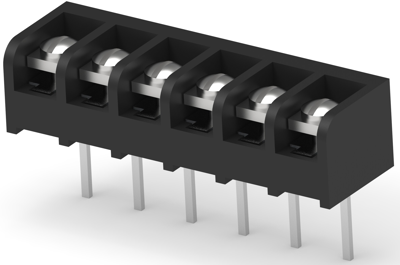

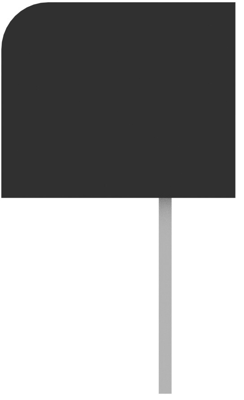

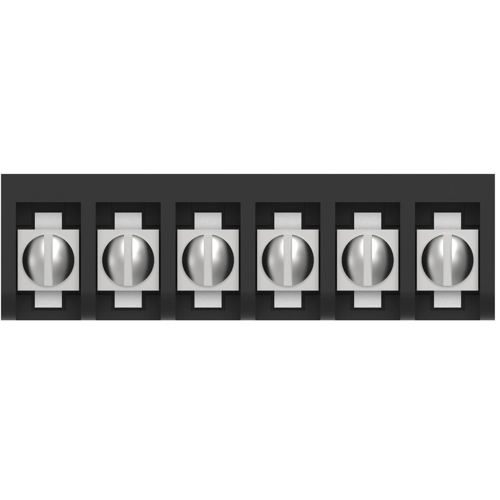

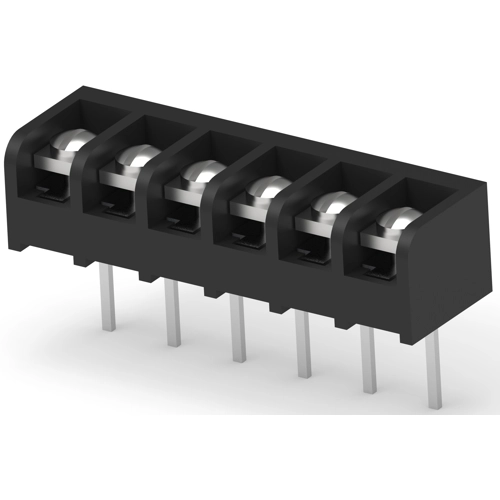

1-1546158-6 | TE Connectivity
PCB terminal, 6 pole, AWG 22 to 14, 20 A, screw connection, black, 1-1546158-6
Unit Price (€ / pc.)
3.6890 € *
Available in 5 Days: 1,500 pcs. - if ordered today
Total Price:
202.90 € *
Price list
Quantity
Price per unit*
55 pcs.
3.6890 €
150 pcs.
3.6057 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1-1546158-6, TE Connectivity
Barrier strip, Tri-Barrier, Solderless wire wrap, Wire-to-Board, 6 Position, 8.26 mm Centerline, 1 Row, 150 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 14 | |
| Pin number | 6 pole | |
| Colour | black | |
| Cable cross-section | 0.3-2.0 mm² | |
| Connection | screw connection | |
| Rated current | 20 A | |
| Width | 15.24 mm | |
| Assembly | THT | |
| Height | 12.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
