1-1546074-9 | TE Connectivity

PCB terminal, 19 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 1-1546074-9

Order No.: 71P0538
EAN: 4099891625993
MPN:
1-1546074-9

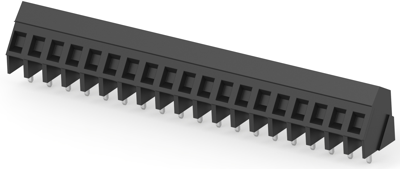

1-1546074-9 TE Connectivity PCB Terminal Blocks Image 1

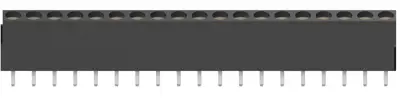

1-1546074-9 TE Connectivity PCB Terminal Blocks Image 2

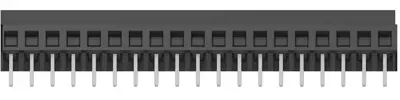

1-1546074-9 TE Connectivity PCB Terminal Blocks Image 3

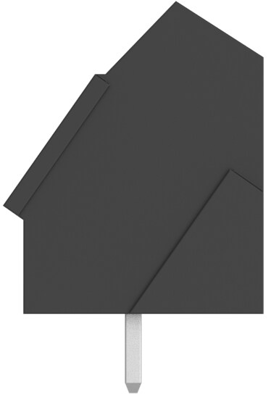

1-1546074-9 TE Connectivity PCB Terminal Blocks Image 4
1-1546074-9 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
17.5763 € *
Available in 5 Days: 297 pcs. - if ordered today
Total Price:
17.58 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5763 €
10 pcs.
16.3149 €
25 pcs.
15.2320 €
50 pcs.
13.8516 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 1-1546074-9, TE Connectivity

The 1-1546074-9 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.

Applications

  • Industrial Control
  • HVAC equipment and controls
  • Communications equipment
  • Test & measurement
  • Fire & security
Technical specifications
Filter Property Value
Grid 5.08 mm
Pin number 19 pole
Height 15 mm
Colour black
Rated current 17.5 A
Cable cross-section 0.05-3 mm²
Connection cage clamp
Assembly THT
AWG cross-section AWG 30-12
Rated voltage 300 V
Width 12.5 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin IT
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
