1-1546074-3 | TE Connectivity
PCB terminal, 13 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 1-1546074-3
Order No.: 71P0536
EAN: 4099891625979
MPN:
1-1546074-3
Unit Price (€ / pc.)
9.4724 € *
Available in 5 Days: 261 pcs. - if ordered today
Total Price:
9.47 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4724 €
5 pcs.
8.9845 €
10 pcs.
8.4014 €
25 pcs.
7.6636 €
*incl. VAT plus shipping costs
Subject to prior sale

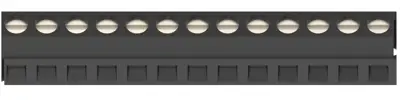

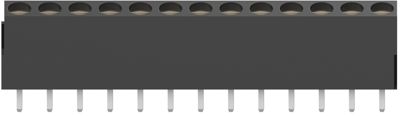

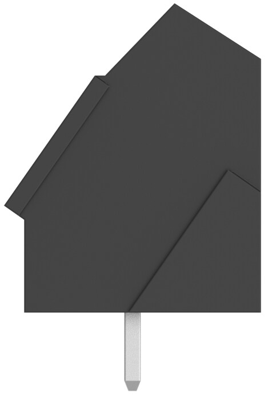

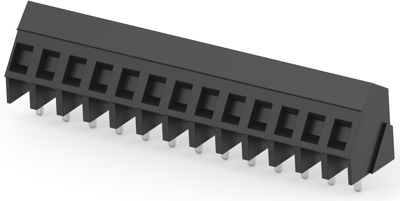

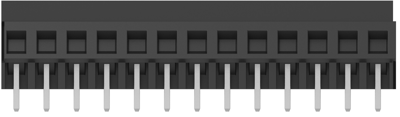

PCB Terminal, 1-1546074-3, TE Connectivity
The 1-1546074-3 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-12 | |
| Pin number | 13 pole | |
| Colour | black | |
| Cable cross-section | 0.05-3 mm² | |
| Connection | cage clamp | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| Rated current | 17.5 A | |
| Width | 12.5 mm | |
| Assembly | THT | |
| Height | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
