1-1546073-2 | TE Connectivity

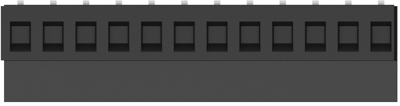

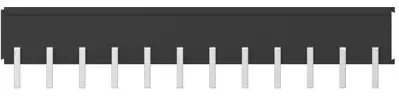

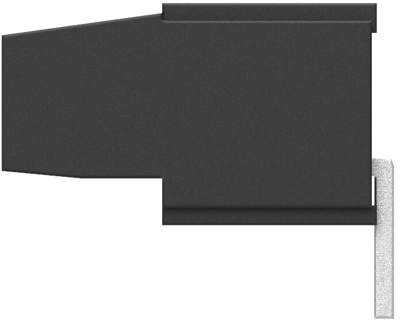

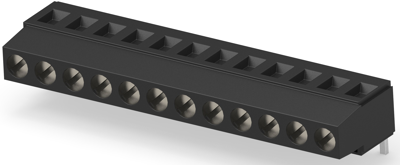

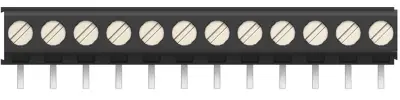

PCB terminal, 12 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 1-1546073-2
Order No.: 71P0531
EAN: 4099891625924
MPN:
1-1546073-2
Unit Price (€ / pc.)
8.3776 € *
Available in 5 Days: 395 pcs. - if ordered today
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
5 pcs.
7.9373 €
10 pcs.
7.4256 €
25 pcs.
6.7711 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-1546073-2, TE Connectivity
The 1-1546073-2 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Height | 15.5 mm | |
| Colour | black | |
| Assembly | THT | |
| Width | 9 mm | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| Connection | cage clamp | |
| Pin number | 12 pole | |
| Cable cross-section | 0.05-3 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
