926647-8 | TE Connectivity

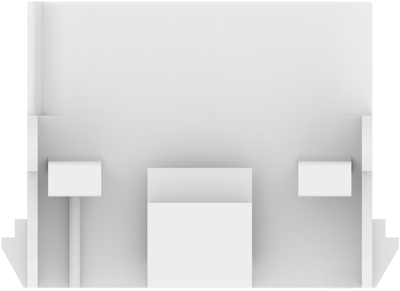

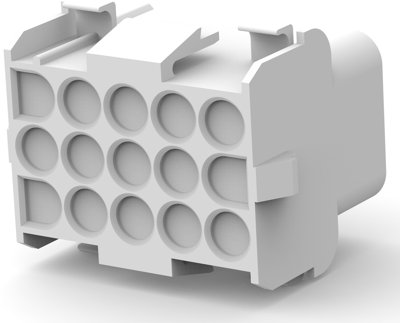

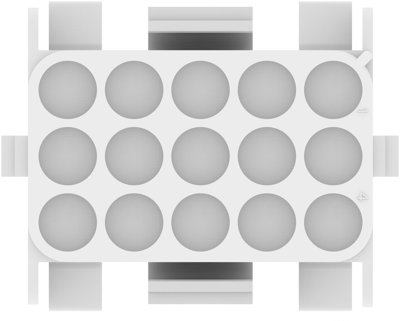

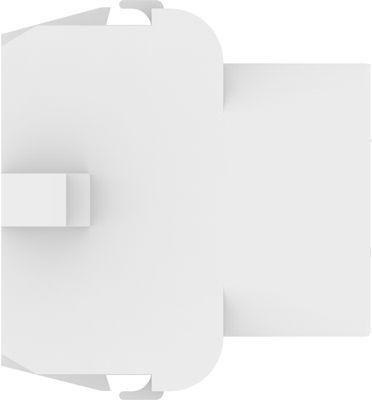

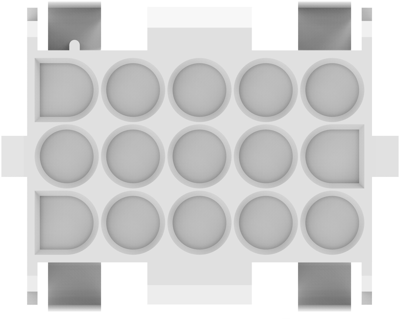

Socket housing, 15 pole, pitch 6.35 mm, straight, natural, 926647-8
Order No.: 35P5097
EAN: 4099889937183
MPN:
926647-8
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 926647-8, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 15 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 6
- Housing Color: natural
- Number of positions: 15
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6.35 mm | |
| Breakable | No | |
| Contact type | pin | |
| Connection | crimp connection | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Number of rows | 3 | |
| Type of locking | Yes | |
| Pin number | 15 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | socket housing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
