917790-1 | TE Connectivity

Pin header, 12 pole, pitch 2.5 mm, straight, natural, 917790-1

Order No.: 72P2260
EAN: 4099891740641
MPN:
917790-1

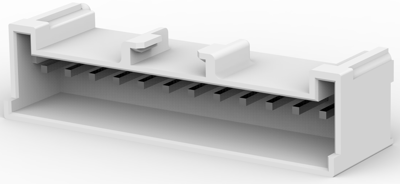

917790-1 TE Connectivity PCB Connection Systems Image 1

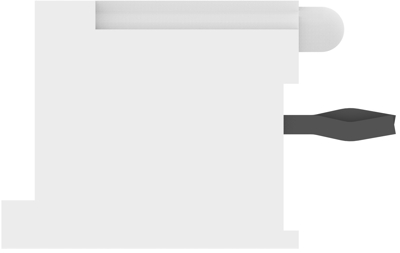

917790-1 TE Connectivity PCB Connection Systems Image 2

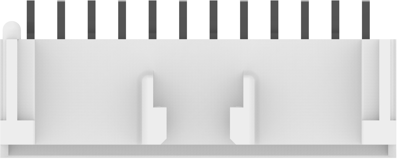

917790-1 TE Connectivity PCB Connection Systems Image 3

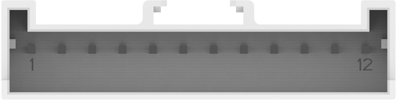

917790-1 TE Connectivity PCB Connection Systems Image 4

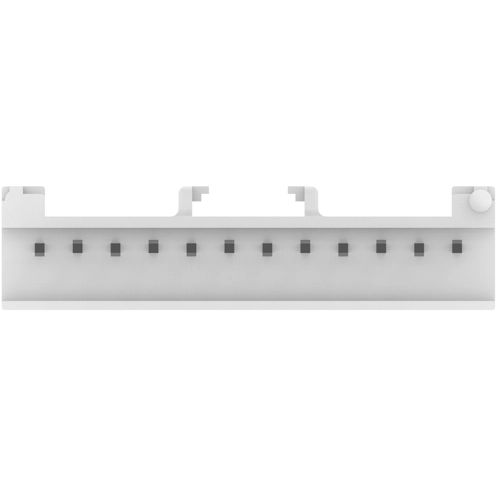

917790-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Available in 5 Days: 782 pcs. - if ordered today
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
1.0234 €
25 pcs.
0.9520 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 917790-1, TE Connectivity

PCB Mount header, Vertical, Wire-to-Board, 12 Position, 2.5 mm Centerline, Fully shrouded, Tin.

Features

  • Audible click when contact is fully inserted into the housing
  • Polarizing ribs on plug housing allows proper mating

Features

  • Household appliances
  • Gaming
  • Garage door openers
  • Security system
  • Industrial control
  • Business equipment
Technical specifications
Filter Property Value
Connection plating tin-plated
Connection solder connection
Colour natural
Additional parts equipped
Pin number 12 pole
Contact type pin
Orientation straight
Type of locking Yes
Rated voltage 250 V
contact surface tin-plated
Version pin header
Rated current 3 A
Number of rows 1
Grid 2.5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
