917733-1 | TE Connectivity

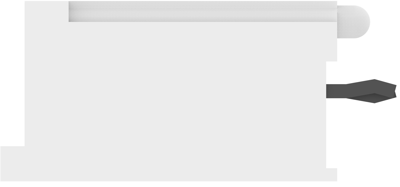

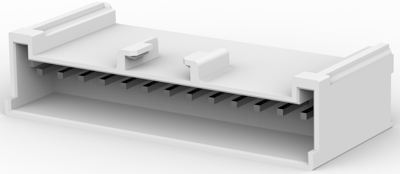

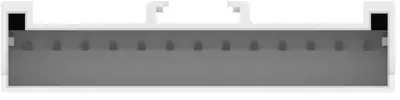

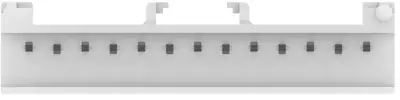

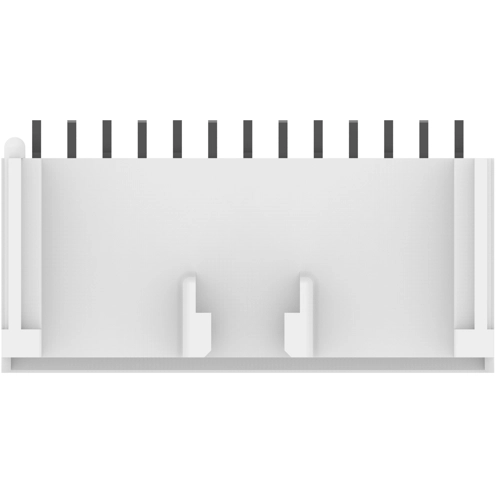

Pin header, 13 pole, pitch 2.5 mm, straight, natural, 917733-1
Unit Price (€ / pc.)
1.8683 € *
Available in 5 Days: 142,100 pcs. - if ordered today
Total Price:
280.25 € *
Price list
Quantity
Price per unit*
150 pcs.
1.8683 €
250 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 917733-1, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 13 Position, 2.5 mm Centerline, Fully shrouded, Tin.
Features
- Audible click when contact is fully inserted into the housing
- Polarizing ribs on plug housing allows proper mating
Features
- Household appliances
- Gaming
- Garage door openers
- Security system
- Industrial control
- Business equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 13 pole | |
| Additional parts | equipped | |
| Colour | natural | |
| Version | pin header | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
