917723-4 | TE Connectivity

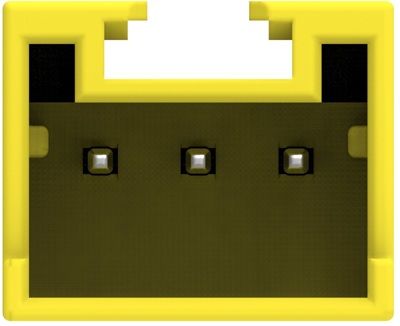

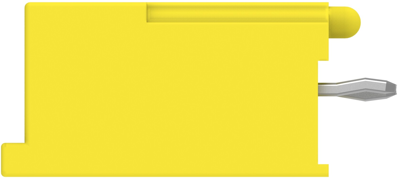

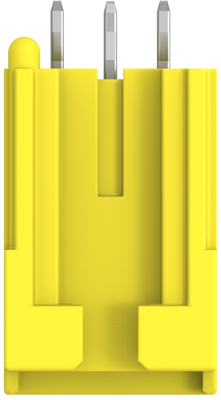

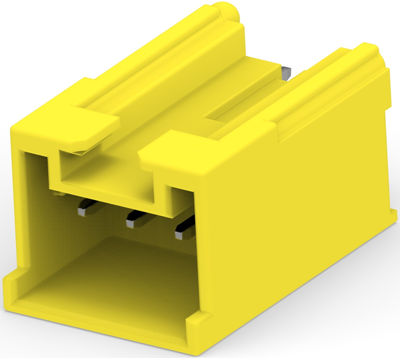

Pin header, 3 pole, pitch 2.5 mm, straight, yellow, 917723-4
Unit Price (€ / pc.)
1.0710 € *
Available in 5 Days: 1,198 pcs. - if ordered today
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
200 pcs.
1.0710 €
600 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 917723-4, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 3 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole - Solder.
Features
- Audible click when contact is fully inserted into the housing
- Polarizing ribs on plug housing allows proper mating
Features
- Household appliances
- Gaming
- Garage door openers
- Security system
- Industrial control
- Business equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Colour | yellow | |
| Version | pin header | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
