9-2834006-2 | TE Connectivity
Connector, 2 pole, pitch 4 mm, natural, 9-2834006-2
Order No.: 72P2355
EAN: 4099891740832
MPN:
9-2834006-2
Unit Price (€ / pc.)
0.8925 € *
Available in 5 Days: 56,000 pcs. - if ordered today
Total Price:
714.00 € *
Price list
Quantity
Price per unit*
800 pcs.
0.8925 €
1600 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

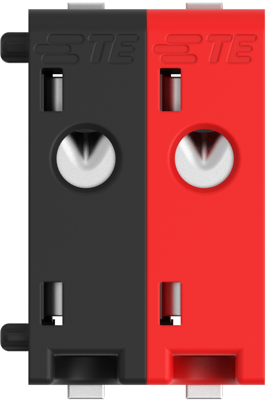

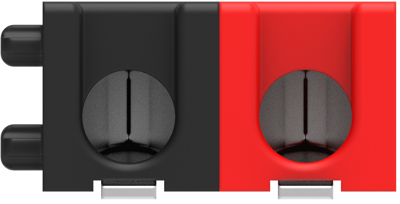

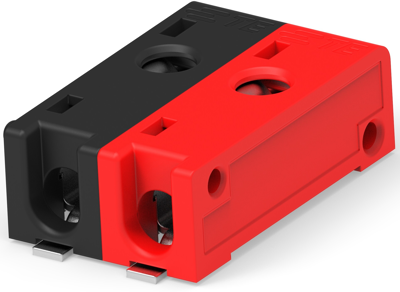

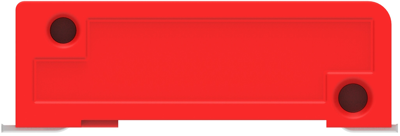

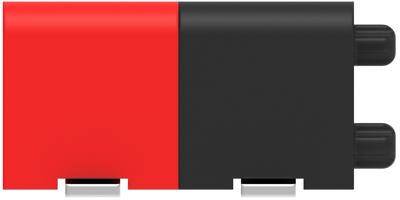

Connector assembly, 9-2834006-2, TE Connectivity
Poke-In connector, Wire-to-Board, 2 Position, 4 mm Centerline, Printed circuit board, Height 4.48 mm, Surface mount, 18 - 22 AWG Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| contact surface | tin-lead | |
| Connection | SMD | |
| Rated voltage | 400 V | |
| Pin number | 2 pole | |
| Additional parts | equipped | |
| Colour | natural | |
| Version | connector | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
