9-1971846-5 | TE Connectivity

Pin header, 5 pole, pitch 5 mm, straight, natural, 9-1971846-5

Order No.: 72P2300
EAN: 4099891740733
MPN:
9-1971846-5
Series: RAST 5

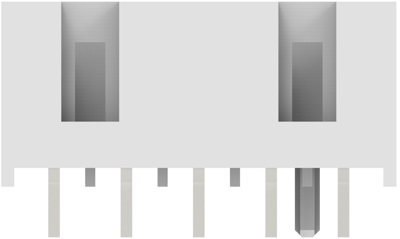

9-1971846-5 TE Connectivity PCB Connection Systems Image 1

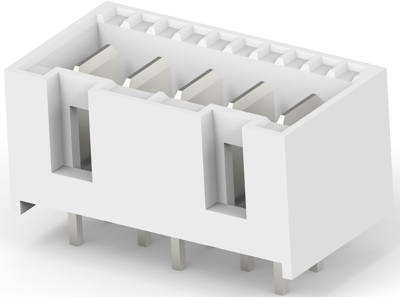

9-1971846-5 TE Connectivity PCB Connection Systems Image 2

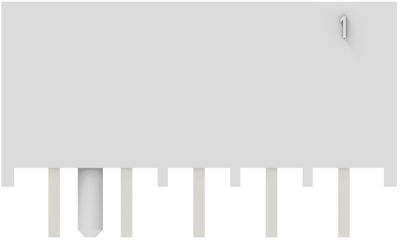

9-1971846-5 TE Connectivity PCB Connection Systems Image 3

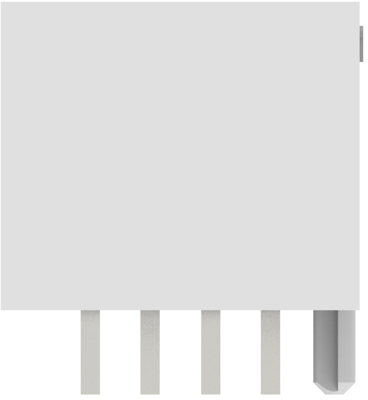

9-1971846-5 TE Connectivity PCB Connection Systems Image 4

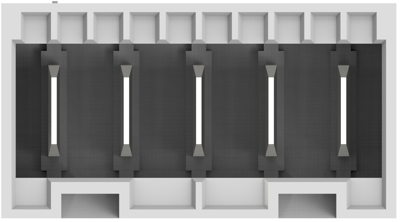

9-1971846-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available in 5 Days: 1,199 pcs. - if ordered today
Total Price:
273.11 € *
Price list
Quantity
Price per unit*
150 pcs.
1.8207 €
250 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 9-1971846-5, TE Connectivity

PCB Mount header, Vertical, Wire-to-Board, 5 Position, 5 mm Centerline, Fully shrouded, Silver, Through Hole-Solder

Features

  • 3 footprint layouts
  • Thousands of configurations of keying & latching & polarization
  • Silver plating

Applications

  • Front-loading washing machine
  • Dishwasher
  • Microwave oven
  • Refrigerator
Technical specifications
Colour natural
Type of locking Yes
contact surface silver-plated
Rated current 20 A
Grid 5 mm
Connection plating silver-plated
Pin number 5 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type tab
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
