9-1971773-2 | TE Connectivity

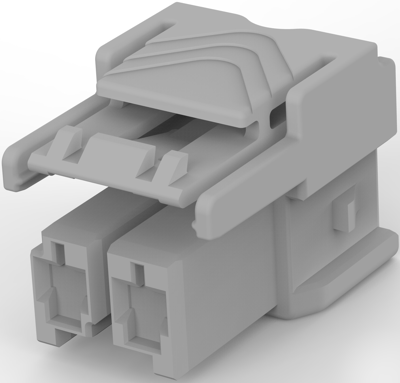

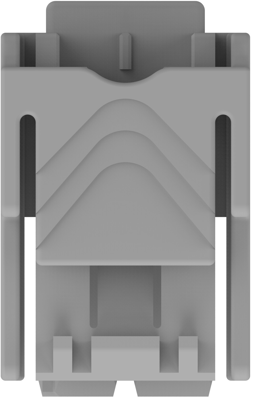

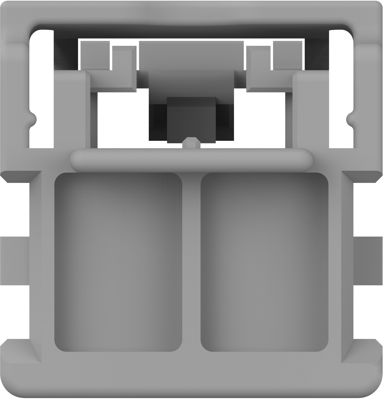

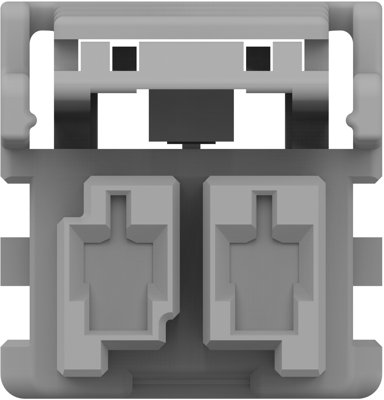

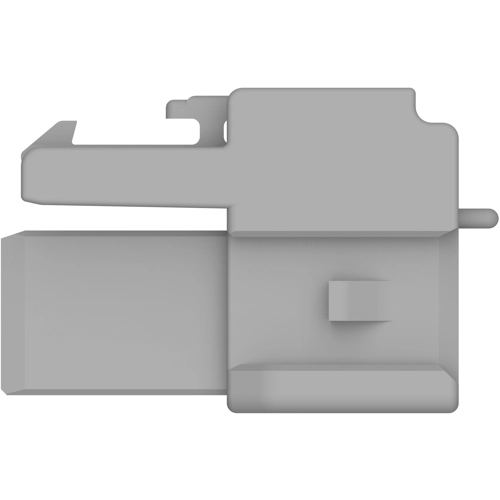

Plug housing, 2 pole, pitch 6 mm, straight, gray, 9-1971773-2
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 12 Weeks
PCB Connection System, 9-1971773-2, TE Connectivity
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: gray
- Number of positions: 2
- Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
- Centerline (Pitch): 6 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Grid | 6 mm | |
| Pin number | 2 pole | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
