9-1827864-6 | TE Connectivity

Socket housing, 12 pole, pitch 2.5 mm, straight, black, 9-1827864-6

Order No.: 72P2271
EAN: 4099891740719
MPN:
9-1827864-6

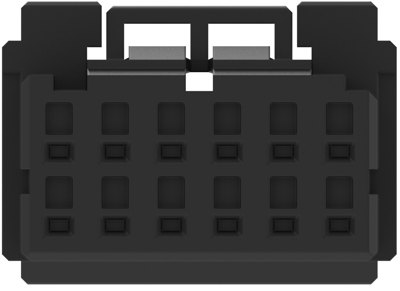

9-1827864-6 TE Connectivity PCB Connection Systems Image 1

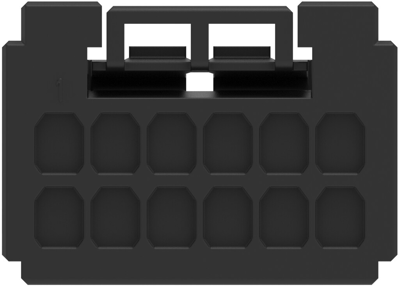

9-1827864-6 TE Connectivity PCB Connection Systems Image 2

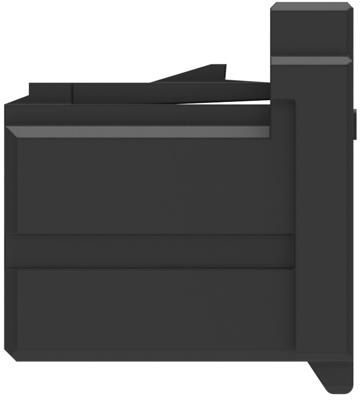

9-1827864-6 TE Connectivity PCB Connection Systems Image 3

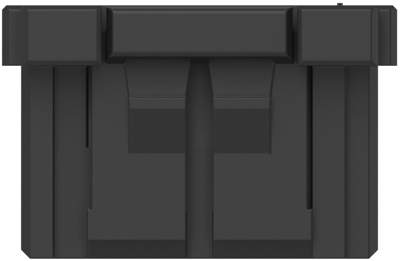

9-1827864-6 TE Connectivity PCB Connection Systems Image 4

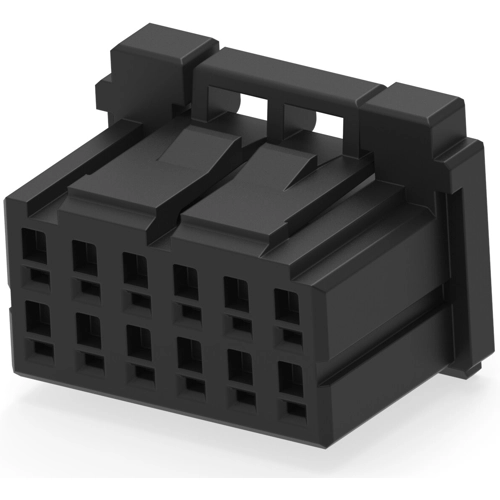

9-1827864-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Available in 5 Days: 467 pcs. - if ordered today
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.0468 €
50 pcs.
1.8445 €
100 pcs.
1.6541 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 9-1827864-6, TE Connectivity

Housing, Receptacle, Wire-to-Board, 12 Position, 2.5 mm Centerline, Crimp, 2 Row, Black, Mating retention, Wire & Cable, Signal.

Technical specifications
Colour black
Type of locking Yes
contact surface nickel-plated
Rated current 5 A
Grid 2.5 mm
Pin number 12 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin JP
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
