8-2232532-4 | TE Connectivity

Connector, 4 pole, pitch 5 mm, straight, natural, 8-2232532-4

Order No.: 72P1841
EAN: 4099891739911
MPN:
8-2232532-4

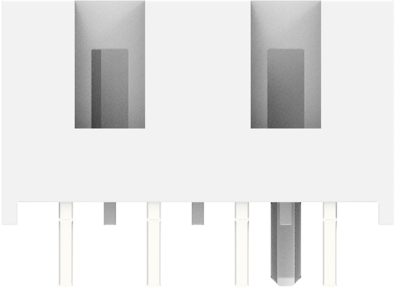

8-2232532-4 TE Connectivity PCB Connection Systems Image 1

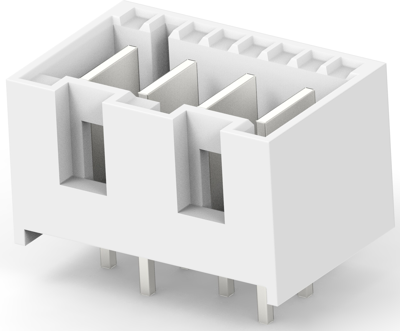

8-2232532-4 TE Connectivity PCB Connection Systems Image 2

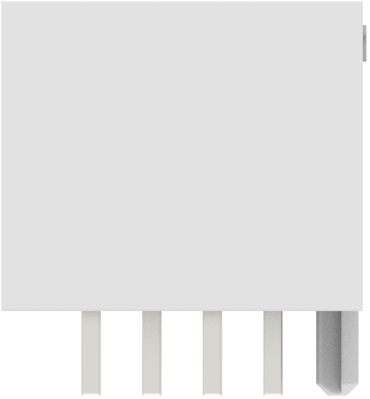

8-2232532-4 TE Connectivity PCB Connection Systems Image 3

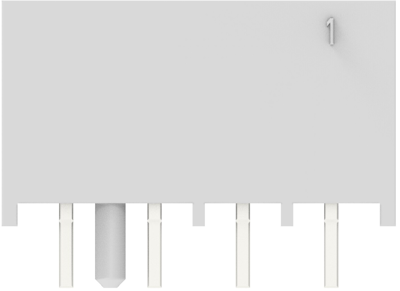

8-2232532-4 TE Connectivity PCB Connection Systems Image 4

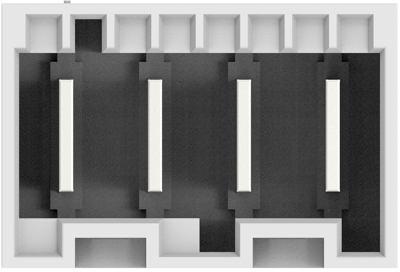

8-2232532-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9996 € *
Available in 5 Days: 51,205 pcs. - if ordered today
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9996 €
10 pcs.
0.9282 €
25 pcs.
0.8568 €
50 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

Tab header, 8-2232532-4, TE Connectivity

PCB Mount header, Vertical, Wire-to-Board, 4 Position, 5 mm Centerline, Fully shrouded, Tin, Through Hole - Solder, Power, Natural.

Technical specifications
Filter Property Value
Grid 5 mm
Contact type tab
Connection plating tin-plated
contact surface tin-plated
Version connector
Rated current 16 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 4 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
