8-1971800-1 | TE Connectivity

Connector, 8 pole, pitch 2.5 mm, straight, natural, 8-1971800-1

Order No.: 72P1789
EAN: 4099891739867
MPN:
8-1971800-1

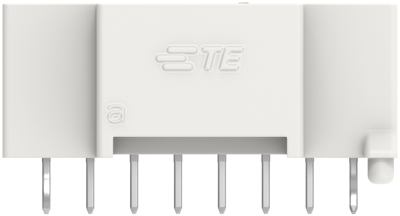

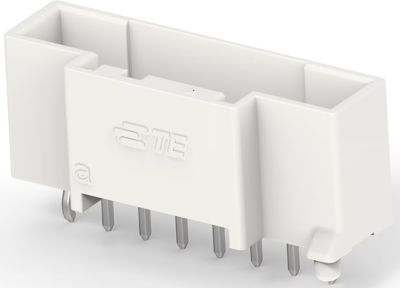

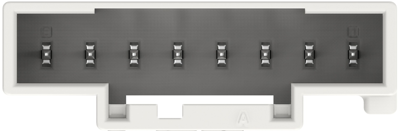

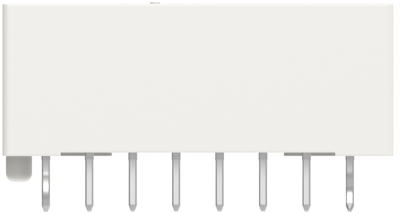

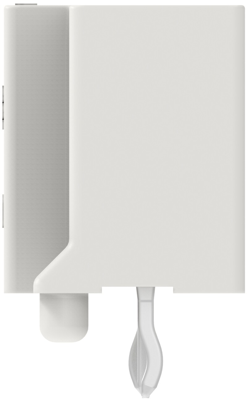

8-1971800-1 TE Connectivity PCB Connection Systems Image 1
8-1971800-1 TE Connectivity PCB Connection Systems Image 2
8-1971800-1 TE Connectivity PCB Connection Systems Image 3
8-1971800-1 TE Connectivity PCB Connection Systems Image 4
8-1971800-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2785 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
6,014.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
21600 pcs.
0.2785 €

PCB Header, 8-1971800-1, TE Connectivity

The 8-1971800-1 features advanced design concepts to facilitate more stable, reliable and durable connection. This product can be used in a wide range of large electrical products, from home appliances to vending machines that require wire-toboard signal conduction application.

Features

  • Ergonomic design eases assembly process

Applications

  • Large home appliances
  • Small home appliances
  • Industrial control
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 3 A
Grid 2.5 mm
Connection plating tin-plated
Pin number 8 pole
Version connector
Additional parts equipped
Orientation straight
Connection solder connection
Contact type tab
Rated voltage 50 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
