796636-4 | TE Connectivity

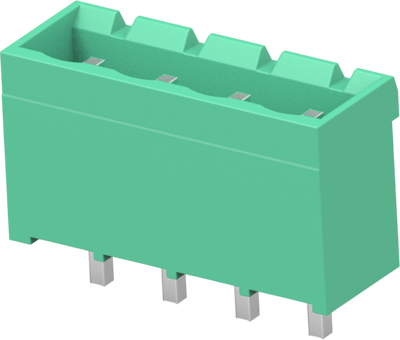

Pin header, 4 pole, pitch 5.08 mm, straight, green, 796636-4
Order No.: 59F920
MPN:
796636-4
Unit Price (€ / pc.)
0.8687 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.7973 €
50 pcs.
0.7497 €
100 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal block, 796636-4, TE Connectivity
4 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm Centerline, 1 Row, 30 - 12 AWG, 0.05 - 3 mm² Wire, 300 VAC, Printed Circuit Board.
Technical specifications
| Connection | solder connection | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| Number of rows | 1 | |
| Orientation | straight | |
| Version | pin header | |
| Colour | green | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Pin number | 4 pole | |
| Rated current | 15 A |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
