794901-1 | TE Connectivity

Plug housing, 3 pole, pitch 6.35 mm, straight, black, 794901-1

Order No.: 35P4943
EAN: 4099889935905
MPN:
794901-1

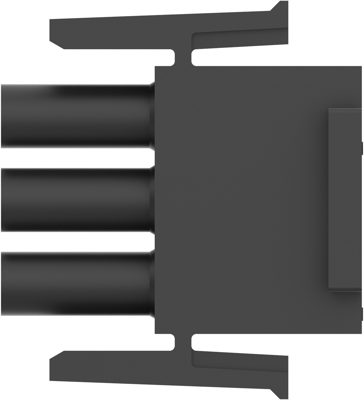

794901-1 TE Connectivity PCB Connection Systems Image 1

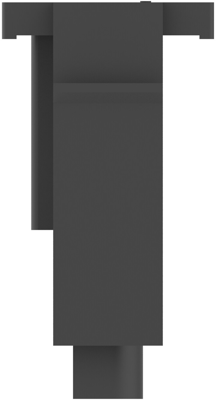

794901-1 TE Connectivity PCB Connection Systems Image 2

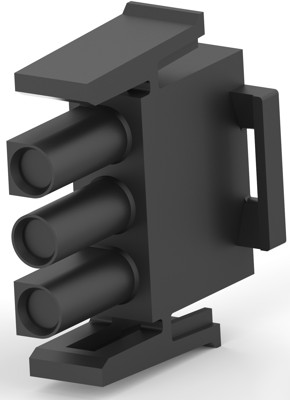

794901-1 TE Connectivity PCB Connection Systems Image 3

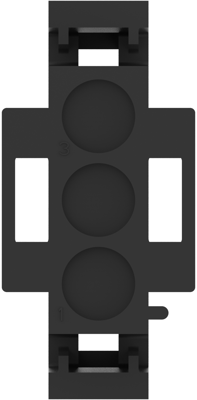

794901-1 TE Connectivity PCB Connection Systems Image 4

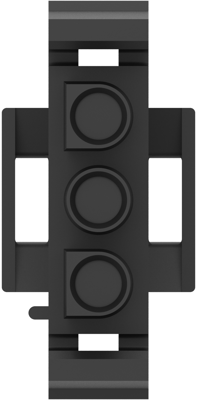

794901-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7973 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7259 €
50 pcs.
0.6426 €
100 pcs.
0.5831 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 794901-1, TE Connectivity

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Colour black
Breakable No
Type of locking No
Grid 6.35 mm
Pin number 3 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 1
Logistics
Property Value
Country of origin MX
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
