776180-5 | TE Connectivity

Connector, 35 pole, pitch 4 mm, angled, blue, 776180-5

Order No.: 72P1413
EAN: 4099891739591
MPN:
776180-5
Series: AMPSEAL

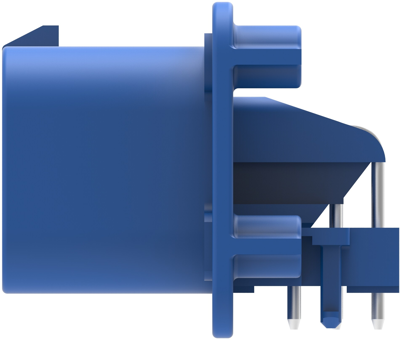

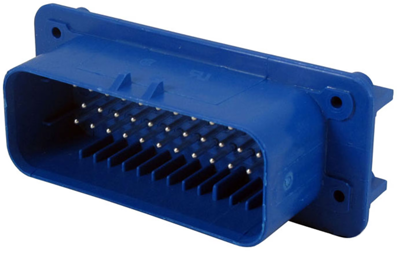

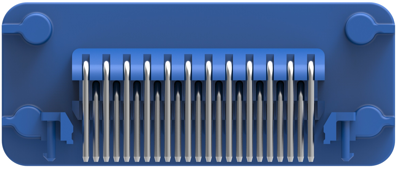

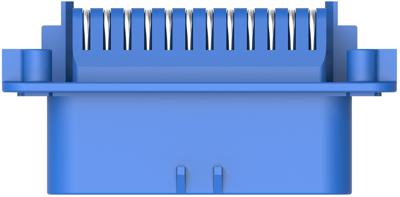

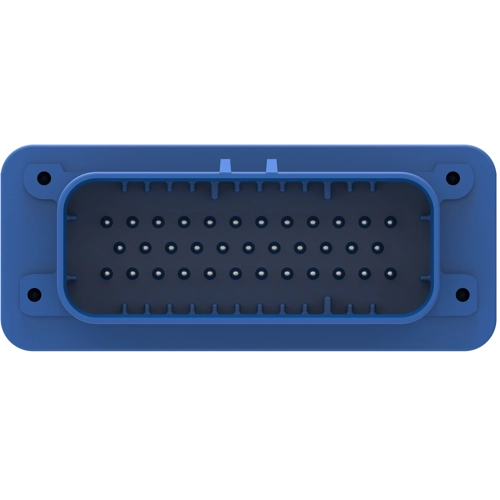

776180-5 TE Connectivity PCB Connection Systems Image 1
776180-5 TE Connectivity PCB Connection Systems Image 2
776180-5 TE Connectivity PCB Connection Systems Image 3
776180-5 TE Connectivity PCB Connection Systems Image 4
776180-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
24.4188 € *
Available in 5 Days: 72 pcs. - if ordered today
Total Price:
24.42 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4188 €
10 pcs.
22.4672 €
25 pcs.
20.2181 €
50 pcs.
18.1951 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 776180-5, TE Connectivity

PCB Mount header, Right angle, Wire-to-Board, 35 Position, 4 mm Centerline, Fully shrouded, Tin, Through Hole-Solder, Sealable.

Features

  • Secure positive contact seating through secondary contact locking and lanceless contacts
  • Protect from dust, water, and overspray with up to IP6K9K rugged sealing capabilities
  • Reduce tangling during storage and handling thanks to lanceless receptacle contacts
  • Reduce wire strain
  • Minimize mismating and misidentification with different connector colors and mechanical polarized keyings
Technical specifications
Colour blue
Type of locking Yes
contact surface tin-plated
Rated current 8 A
Grid 4 mm
Pin number 35 pole
Version connector
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 3
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
