776180-4 | TE Connectivity

Connector, 35 pole, pitch 4 mm, angled, gray, 776180-4

Order No.: 72P1412
EAN: 4099891739584
MPN:
776180-4
Series: AMPSEAL

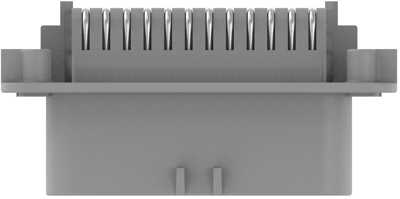

776180-4 TE Connectivity PCB Connection Systems Image 1

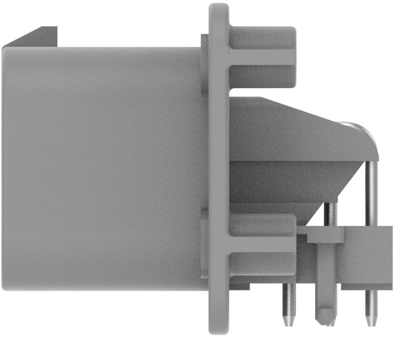

776180-4 TE Connectivity PCB Connection Systems Image 2

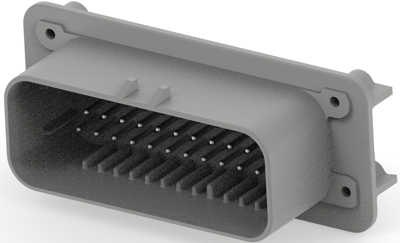

776180-4 TE Connectivity PCB Connection Systems Image 3

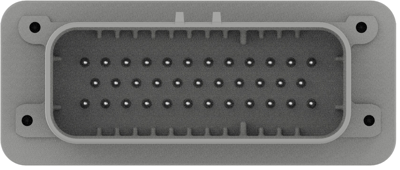

776180-4 TE Connectivity PCB Connection Systems Image 4
776180-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
38.5560 € *
Available in 5 Days: 101 pcs. - if ordered today
Total Price:
38.56 € *
Price list
Quantity
Price per unit*
1 pcs.
38.5560 €
10 pcs.
35.4739 €
25 pcs.
32.2847 €
50 pcs.
29.3811 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 776180-4, TE Connectivity

PCB Mount header, Right angle, Wire-to-Board, 35 Position, 4 mm Centerline, Fully shrouded, Tin (Sn), Through Hole-Solder.

Features

  • Secure positive contact seating through secondary contact locking and lanceless contacts
  • Protect from dust, water, and overspray with up to IP6K9K rugged sealing capabilities
  • Reduce tangling during storage and handling thanks to lanceless receptacle contacts
  • Reduce wire strain
  • Minimize mismating and misidentification with different connector colors and mechanical polarized keyings
Technical specifications
Colour gray
Type of locking Yes
contact surface tin-plated
Rated current 8 A
Grid 4 mm
Pin number 35 pole
Version connector
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 3
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
