7-2204801-8 | TE Connectivity

Pin header, 16 pole, pitch 3 mm, straight, black, 7-2204801-8

Order No.: 72P1272
EAN: 4099891739294
MPN:
7-2204801-8
Series: Micro

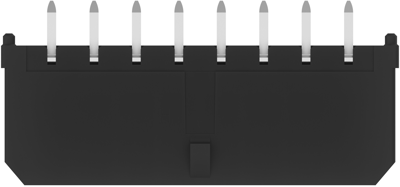

7-2204801-8 TE Connectivity PCB Connection Systems Image 1

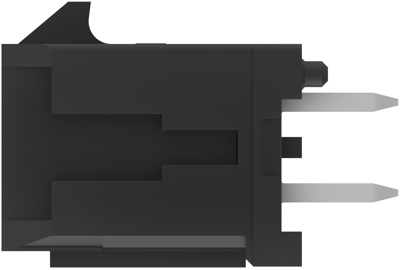

7-2204801-8 TE Connectivity PCB Connection Systems Image 2

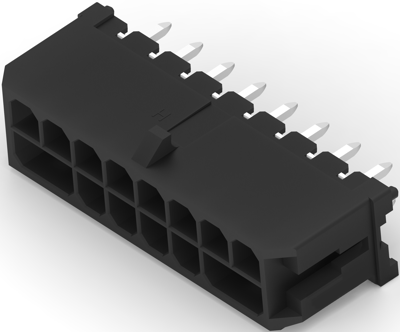

7-2204801-8 TE Connectivity PCB Connection Systems Image 3

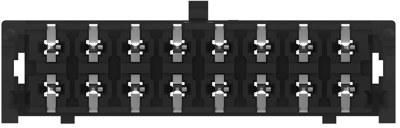

7-2204801-8 TE Connectivity PCB Connection Systems Image 4

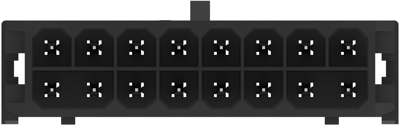

7-2204801-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.9627 € *
Available in 5 Days: 3,700 pcs. - if ordered today
Total Price:
3.96 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9627 €
10 pcs.
3.6533 €
50 pcs.
3.2844 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 7-2204801-8, TE Connectivity

The 7-2204801-8 is a wire-to-board power that can provide a high current up to 12.5A per pin in the common industry footprint of 3.0mm. This product is useful for servers, switches, storage devices and testing machines. Perform reliably in harsh environments with maximum operating temperature of 105°C.

Features

  • Common industry footprint allows for easy upgrades to existing designs
  • Easy assembly with virtually fool-proof mating features
  • Made with halogen-free material
  • Low contact resistance of 5mΩ max provides lower temperature rise and lower power loss

Applications

  • Power supplies and distribution
  • Gaming Machines
  • Business retail equipment (BRE)
  • Security Systems
  • Measurement Equipment
Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 12.5 A
Grid 3 mm
Pin number 16 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
