647676-6 | TE Connectivity

Pin header, 6 pole, pitch 3.96 mm, angled, white, 647676-6

Order No.: 34P7176
EAN: 4099889914115
MPN:
647676-6
Series: Economy Power

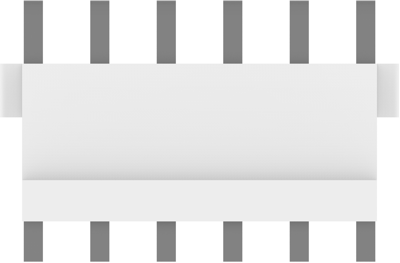

647676-6 TE Connectivity PCB Connection Systems Image 1

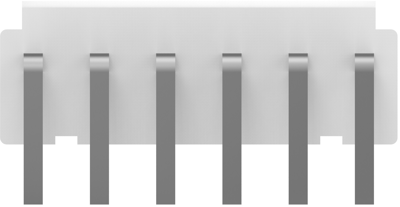

647676-6 TE Connectivity PCB Connection Systems Image 2

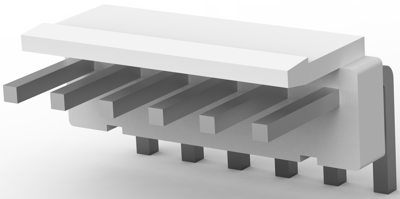

647676-6 TE Connectivity PCB Connection Systems Image 3

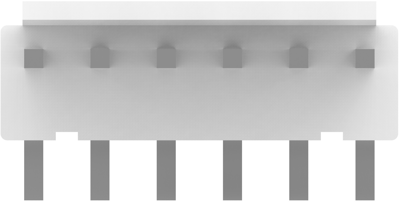

647676-6 TE Connectivity PCB Connection Systems Image 4

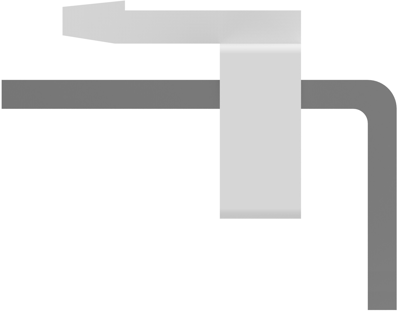

647676-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Available in 5 Days: 6,339 pcs. - if ordered today
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
10 pcs.
0.5117 €
50 pcs.
0.4641 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 647676-6, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle,Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: white
  • Number of positions: 6
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 6 pole
Grid 3.96 mm
Connection solder pin
Orientation angled
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 7.5 A
Additional parts equipped
Number of rows 1
Breakable No
Colour white
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
