643428-2 | TE Connectivity
Socket header, 12 pole, pitch 6.35 mm, straight, black, 643428-2
Unit Price (€ / pc.)
3.2249 € *
Available in 5 Days: 420 pcs. - if ordered today

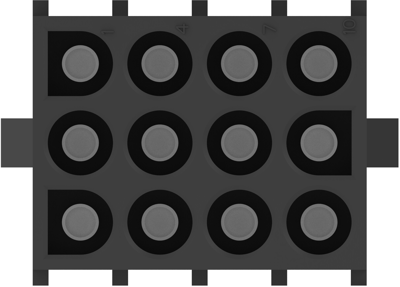

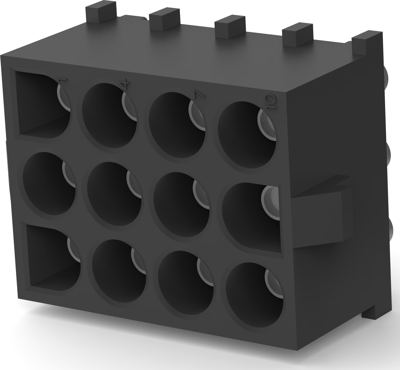

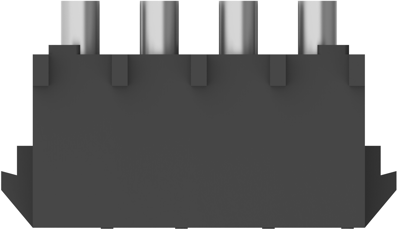

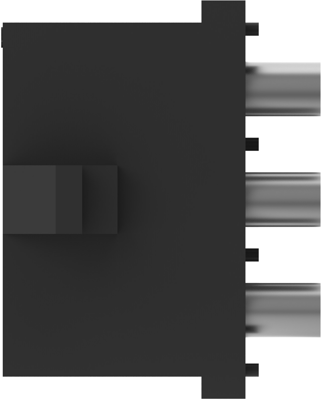

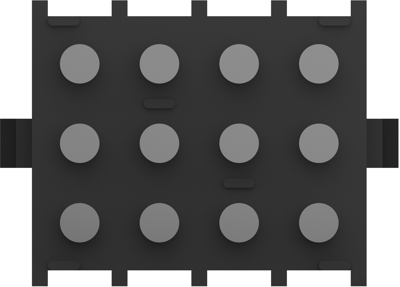

Header assembly, 643428-2, TE Connectivity
Rectangular power connector, Header, Receptacle, Wire-to-Board, 12 Position, 6.35 mm Centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 600 V | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Version | socket header | |
| Colour | black | |
| Grid | 6.35 mm | |
| Rated current | 12 A | |
| Type of locking | Yes | |
| Contact type | socket | |
| Number of rows | 3 | |
| Connection | solder connection | |
| Connection plating | pre-tinned | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
