6-87579-2 | TE Connectivity

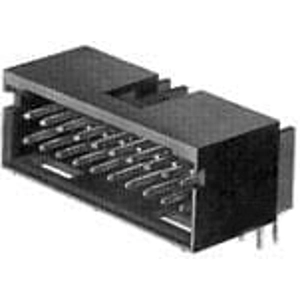

Pin header, 30 pole, pitch 2.54 mm, angled, black, 6-87579-2
Unit Price (€ / pc.)
9.4486 € *
Available in 5 Days: 990 pcs. - if ordered today
Total Price:
9.45 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4486 €
10 pcs.
8.7822 €
25 pcs.
8.1872 €
50 pcs.
7.4494 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB header, 6-87579-2, TE Connectivity
PCB Mount header, Right angle, Board-to-Board / Wire-to-Board, 30 Position, 2.54 mm centerline, Fully shrouded, Tin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 30 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 3 A | |
| Version | pin header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 750 V | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
