6-1971793-4 | TE Connectivity

Plug housing, 6 pole, pitch 2.5 mm, straight, yellow, 6-1971793-4

Order No.: 34P8882
EAN: 4099889916904
MPN:
6-1971793-4

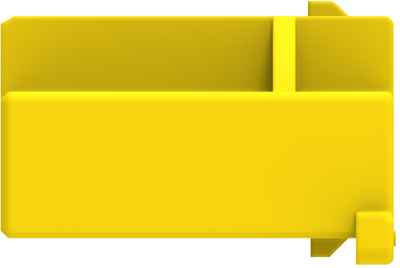

6-1971793-4 TE Connectivity PCB Connection Systems Image 1

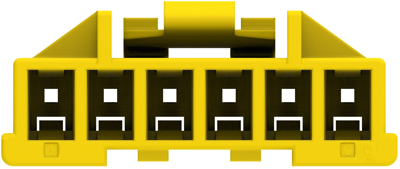

6-1971793-4 TE Connectivity PCB Connection Systems Image 2

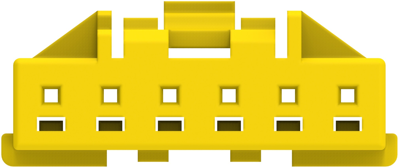

6-1971793-4 TE Connectivity PCB Connection Systems Image 3

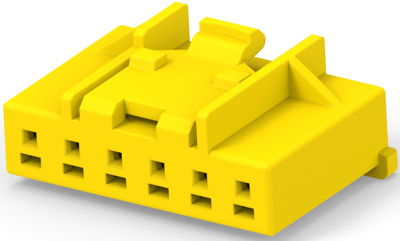

6-1971793-4 TE Connectivity PCB Connection Systems Image 4

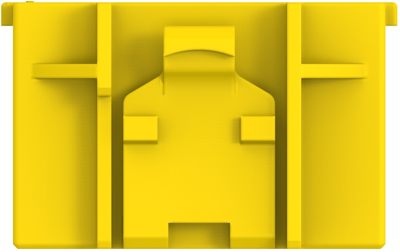

6-1971793-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0869 € *
Available in 5 Days: 26,089 pcs. - if ordered today
Total Price:
260.61 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.0869 €
6000 pcs.
0.0857 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 6-1971793-4, TE Connectivity

Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: PA 66 GF
  • Housing Color: yellow
  • Number of positions: 6
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour yellow
Breakable No
Type of locking Yes
Rated current 3 A
Grid 2.5 mm
Pin number 6 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 50 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
