6-103166-3 | TE Connectivity

Pin header, 30 pole, pitch 2.54 mm, angled, black, 6-103166-3

Order No.: 72P0134
EAN: 4099891737016
MPN:
6-103166-3
Series: AMPMODU

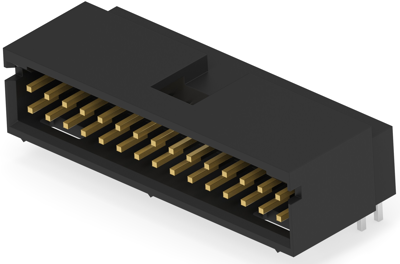

6-103166-3 TE Connectivity PCB Connection Systems Image 1

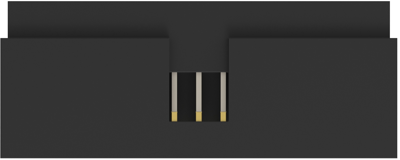

6-103166-3 TE Connectivity PCB Connection Systems Image 2

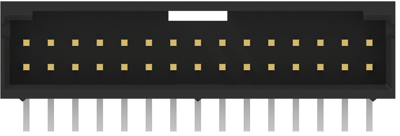

6-103166-3 TE Connectivity PCB Connection Systems Image 3

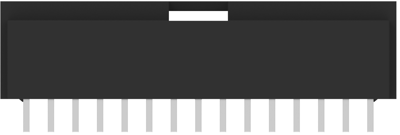

6-103166-3 TE Connectivity PCB Connection Systems Image 4

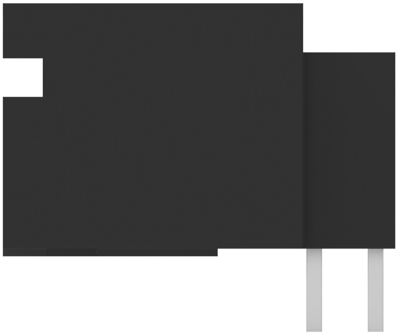

6-103166-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
8.9369 € *
Available in 5 Days: 112 pcs. - if ordered today
Total Price:
178.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
8.9369 €

PCB header, 6-103166-3, TE Connectivity

PCB Mount header, Right angle, Wire-to-Board / Board-to-Board, 30 Position, 2.54 mm centerline, Fully shrouded, Gold.

Technical specifications
Filter Property Value
Additional parts equipped
Colour black
Number of rows 2
Orientation angled
contact surface gold-plated
Pin number 30 pole
Connection solder connection
Version pin header
Contact type pin
Rated voltage 750 V
Connection plating tin-plated
Type of locking Yes
Grid 2.54 mm
Rated current 3 A
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
