5787441-1 | TE Connectivity

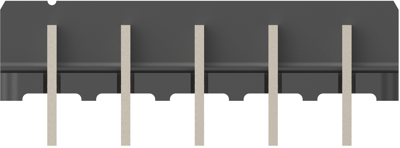

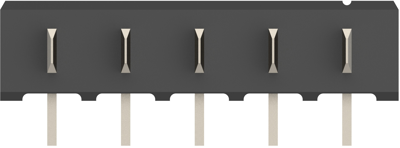

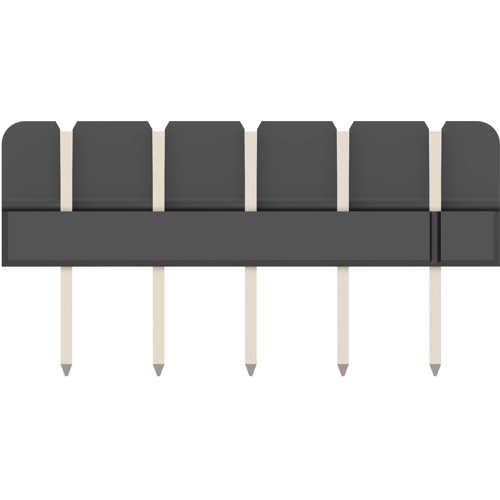

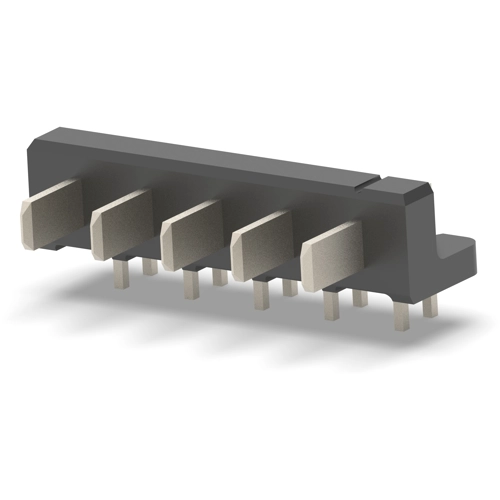

Pin header, 5 pole, pitch 5 mm, angled, black, 5787441-1
Order No.: 37P1571
EAN: 4099889953084
MPN:
5787441-1
Unit Price (€ / pc.)
7.1400 € *
Available in 5 Days: 7,479 pcs. - if ordered today
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1400 €
10 pcs.
6.6283 €
25 pcs.
6.1880 €
50 pcs.
5.6287 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5787441-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 5
- Operating Temperature Range: -30 – 70 °C [-22 – 158 °F]
- Rated current: 8.8 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Colour | black | |
| Version | pin header | |
| Connection | solder pin | |
| Rated voltage | 50 V | |
| Breakable | No | |
| Rated current | 8.8 A | |
| Orientation | angled | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
