5-316087-1 | TE Connectivity

Socket housing, 3 pole, pitch 2.5 mm, straight, natural, 5-316087-1

Order No.: 71P9809
EAN: 4099891735937
MPN:
5-316087-1

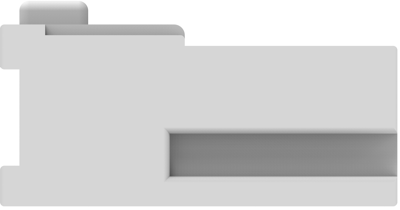

5-316087-1 TE Connectivity PCB Connection Systems Image 1

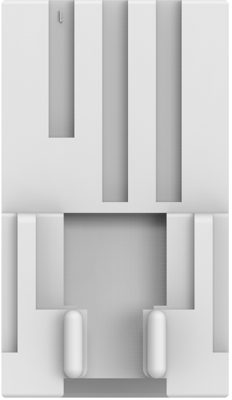

5-316087-1 TE Connectivity PCB Connection Systems Image 2

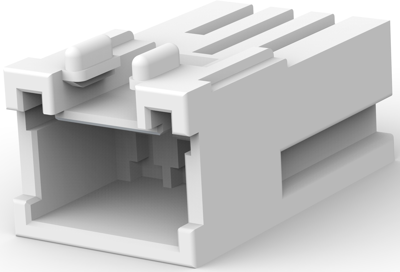

5-316087-1 TE Connectivity PCB Connection Systems Image 3

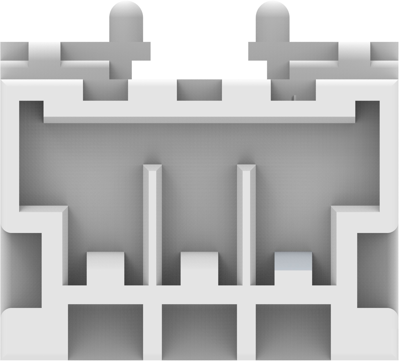

5-316087-1 TE Connectivity PCB Connection Systems Image 4

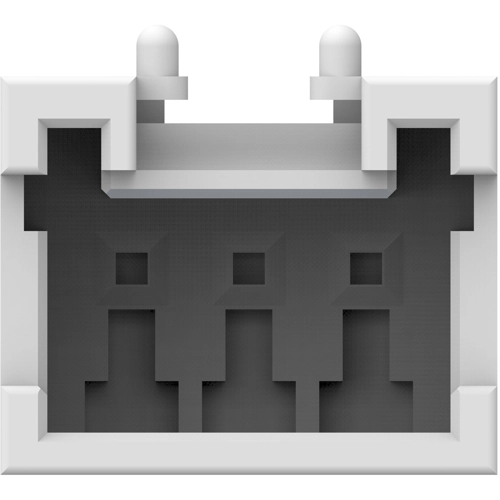

5-316087-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3570 € *
Available in 5 Days: 8,056 pcs. - if ordered today
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.3213 €
50 pcs.
0.2796 €
100 pcs.
0.2368 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 5-316087-1, TE Connectivity

Rectangular connector housing, Wire-to-Wire, 3 Position, 2.5 mm Centerline, 1 Row, Nylon 66, Receptacle, Tab.

Features

  • Audible click when contact is fully inserted into the housing
  • Polarizing ribs on plug housing allows proper mating

Applications

  • Household appliances
  • Gaming
  • Garage door openers
  • Security system
  • Industrial control
  • Business equipment
Technical specifications
Colour natural
Type of locking Yes
Rated current 3 A
Grid 2.5 mm
Pin number 3 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type tab
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
