5-2316109-0 | TE Connectivity

Socket housing, 50 pole, pitch 2 mm, straight, black, 5-2316109-0

Order No.: 71P9762
EAN: 4099891735852
MPN:
5-2316109-0
Series: FCB-405

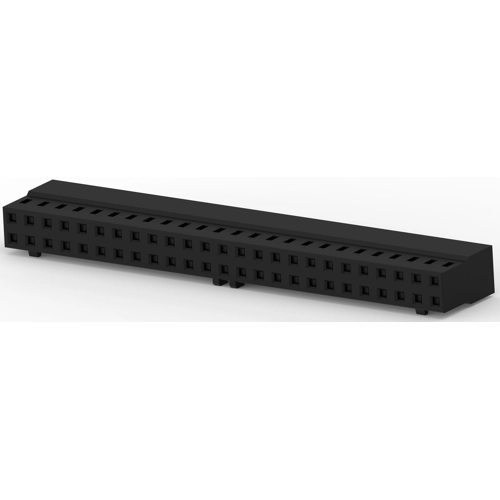

5-2316109-0 TE Connectivity PCB Connection Systems Image 1
5-2316109-0 TE Connectivity PCB Connection Systems Image 2
5-2316109-0 TE Connectivity PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available in 5 Days: 1,950 pcs. - if ordered today
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
10 pcs.
1.6065 €
50 pcs.
1.4399 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle housing, 5-2316109-0, TE Connectivity

The 5-2316109-0 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.

Applications

  • Servo Drives
  • Industrial Controls
  • Material Handling
  • Instrumentation and Test Equipment
  • Building Automation
  • PLC
Technical specifications
Colour black
Type of locking Yes
Rated current 2 A
Grid 2 mm
Pin number 50 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 125 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
