5-2232264-4 | TE Connectivity

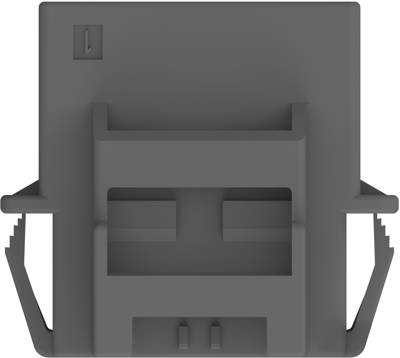

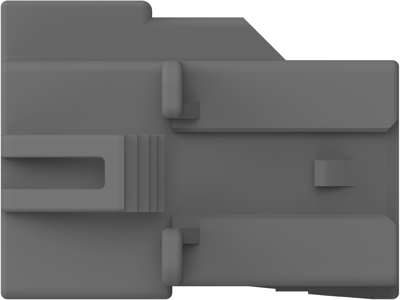

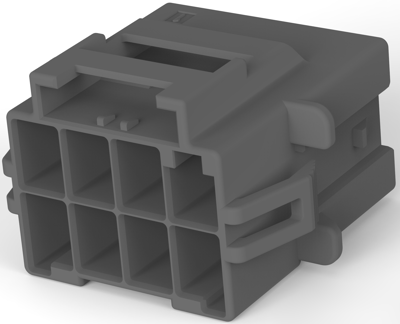

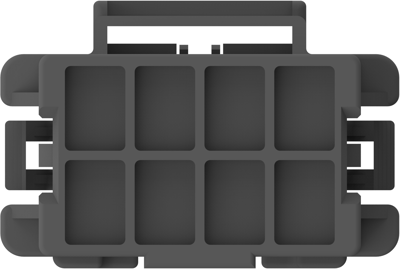

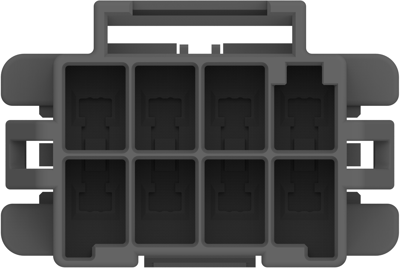

Socket housing, 8 pole, pitch 6 mm, straight, gray, 5-2232264-4
Unit Price (€ / pc.)
0.8211 € *
Available in 5 Days: 1,500 pcs. - if ordered today
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.7616 €
25 pcs.
0.7140 €
50 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5-2232264-4, TE Connectivity
Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Tab
- Housing Material: Nylon GF
- Housing Color: gray
- Number of positions: 8
- Operating Temperature Range: -55 – 140 °C [-67 – 284 °F]
- Centerline (Pitch): 6 mm
- Row-to-Row Spacing: 8.1 mm [0.319 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | gray | |
| Additional parts | unequipped | |
| Pin number | 8 pole | |
| Contact type | tab | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Rated voltage | 600 V | |
| Version | socket housing | |
| Number of rows | 2 | |
| Grid | 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
