5-1871056-0 | TE Connectivity

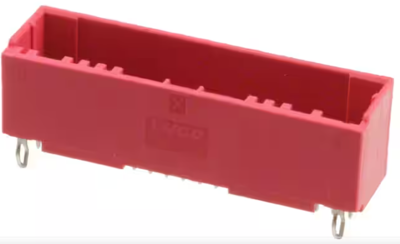

Pin header, 40 pole, pitch 2 mm, straight, red, 5-1871056-0
Unit Price (€ / pc.)
12.0547 € *
Available: 0 pcs.
Available in 5 Days: 60,410 pcs.
Leadtime: 19 Weeks **
Total Price:
12.05 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0547 €
10 pcs.
11.0908 €
50 pcs.
9.9722 €
100 pcs.
8.9845 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 5-1871056-0, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 40 Position, 2 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Colour | red | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 3 A | |
| Grid | 2 mm | |
| Connection plating | tin-plated | |
| Pin number | 40 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 125 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
