5-103414-6 | TE Connectivity

Pin header, 8 pole, pitch 2.54 mm, straight, black, 5-103414-6

Order No.: 71P9238
EAN: 4099891734619
MPN:
5-103414-6
Series: AMPMODU

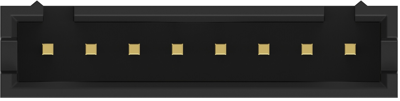

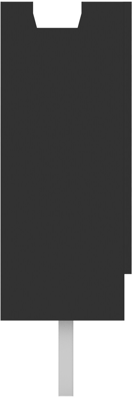

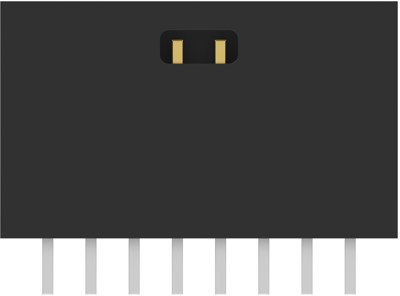

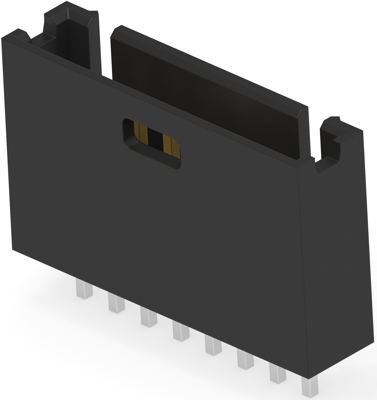

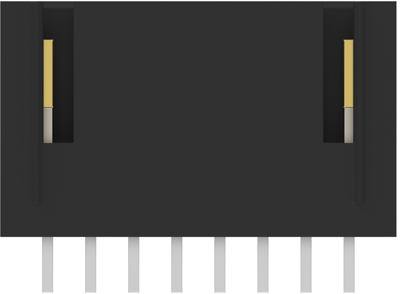

5-103414-6 TE Connectivity PCB Connection Systems Image 1
5-103414-6 TE Connectivity PCB Connection Systems Image 2
5-103414-6 TE Connectivity PCB Connection Systems Image 3
5-103414-6 TE Connectivity PCB Connection Systems Image 4
5-103414-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Standard delivery time from the manufacturer is: 36 Weeks
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7370 €
50 pcs.
2.4633 €
100 pcs.
2.2134 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 5-103414-6, TE Connectivity

The 5-103414-6 is a standard profile header that can be used for feed-to and feed-thru applications. This product's housing is black thermoplastic, flame retardant and 94V-0 rated.

Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Number of rows 1
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
