5-102203-2 | TE Connectivity

Pin header, 5 pole, pitch 2.54 mm, angled, black, 5-102203-2

Order No.: 71P9204
EAN: 4099891734305
MPN:
5-102203-2
Series: AMPMODU

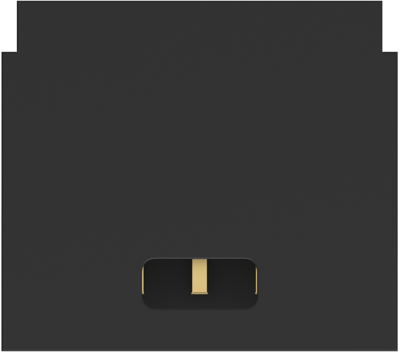

5-102203-2 TE Connectivity PCB Connection Systems Image 1

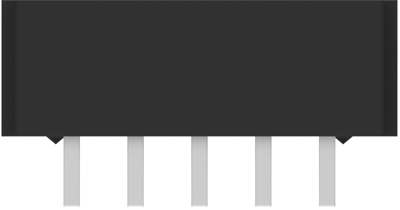

5-102203-2 TE Connectivity PCB Connection Systems Image 2

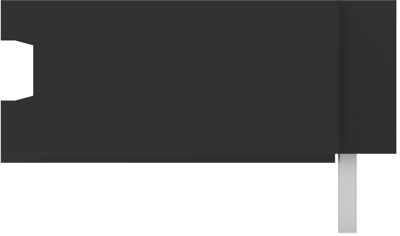

5-102203-2 TE Connectivity PCB Connection Systems Image 3

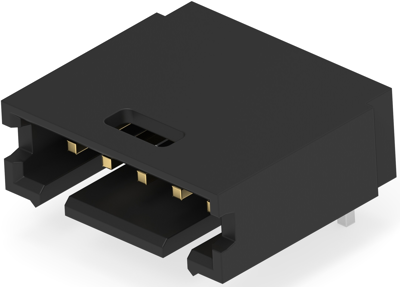

5-102203-2 TE Connectivity PCB Connection Systems Image 4

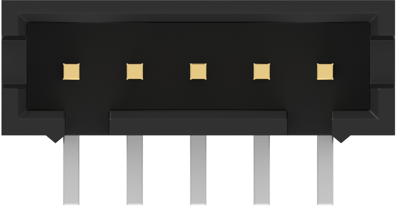

5-102203-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.4871 € *
Available in 5 Days: 31,704 pcs. - if ordered today
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4871 €
10 pcs.
2.2610 €
50 pcs.
2.0349 €
100 pcs.
1.8326 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 5-102203-2, TE Connectivity

The 5-102203-2 is a standard profile header that can be used for feed-to and feed-thru applications. This product's housing is black thermoplastic, flame retardant and 94V-0 rated.

Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 5 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Number of rows 1
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
