5-102203-1 | TE Connectivity

Pin header, 4 pole, pitch 2.54 mm, angled, black, 5-102203-1

Order No.: 71P9203
EAN: 4099891734299
MPN:
5-102203-1
Series: AMPMODU

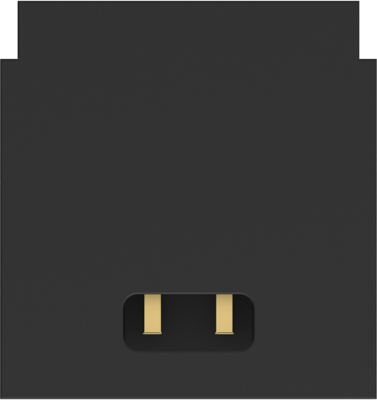

5-102203-1 TE Connectivity PCB Connection Systems Image 1

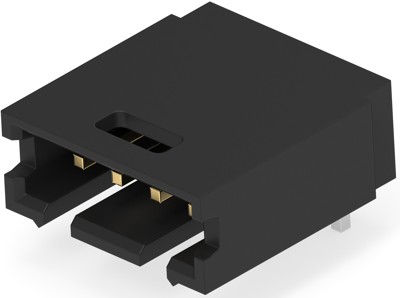

5-102203-1 TE Connectivity PCB Connection Systems Image 2

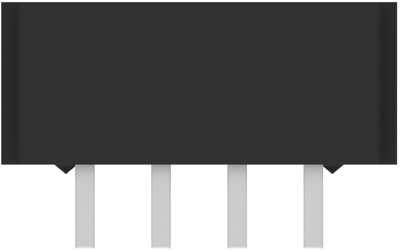

5-102203-1 TE Connectivity PCB Connection Systems Image 3

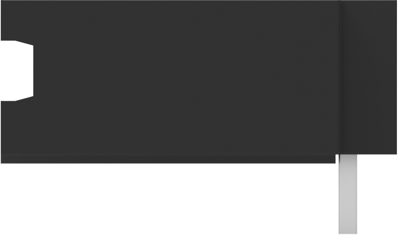

5-102203-1 TE Connectivity PCB Connection Systems Image 4

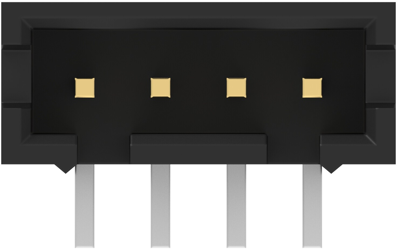

5-102203-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.6775 € *
Available in 5 Days: 11,200 pcs. - if ordered today
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6775 €
10 pcs.
2.4633 €
50 pcs.
2.2134 €
100 pcs.
1.9992 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 5-102203-1, TE Connectivity

PCB Mount header, Right angle, Board-to-Board, 4 Position, 2.54 mm Centerline, Fully shrouded, Gold, Through Hole - Solder.

Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 4 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Number of rows 1
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
